cayenne 957 headlight connector PIN wiring diagrams

[Loren]

kenchan, on May 24 2009, 07:19 PM, said:

cayenne 957 headlight connector PIN wiring diagrams

Model year and US/Canada or RoW please...

[kenchan]

Loren, on May 24 2009, 06:38 PM, said:

kenchan, on May 24 2009, 07:19 PM, said:

cayenne 957 headlight connector PIN wiring diagrams

Model year and US/Canada or RoW please...

Sorry !!! Loren

My Car 2004 Cayenne V6 (955) DIY conversions 957 Turbo Facelift

Can you give me 957 headlight connector wiring diagrams.Please!!!!!!!!!!!



Thank!!!!!!

[Loren]

kenchan, on May 24 2009, 08:55 PM, said:


Loren, on May 24 2009, 06:38 PM, said:

kenchan, on May 24 2009, 07:19 PM, said:

cayenne 957 headlight connector PIN wiring diagrams

Model year and US/Canada or RoW please...

Sorry !!! Loren

My Car 2004 Cayenne V6 (955) DIY conversions 957 Turbo Facelift

Can you give me 957 headlight connector wiring diagrams.Please!!!!!!!!!!!



Thank!!!!!!

[kenchan]

Thanks ... Loren

I have one more request.

Could you provide 2004 Cayenne V6 (955) Bi-Xenon headlight connector wiring diagrams.Please!

Thank!

ken

[Loren]

kenchan, on May 25 2009, 09:11 PM, said:

Thanks ... Loren

I have one more request.

Could you provide 2004 Cayenne V6 (955) Bi-Xenon headlight connector wiring diagrams.Please!

Thank!

ken

What suspension option - they are different.

[kenchan]

Loren, on May 25 2009, 08:21 PM, said:

kenchan, on May 25 2009, 09:11 PM, said:

Thanks ... Loren

I have one more request.

Could you provide 2004 Cayenne V6 (955) Bi-Xenon headlight connector wiring diagrams.Please!

Thank!

ken

What suspension option - they are different.

Loren:

non air-suspension

[Loren]

kenchan, on May 25 2009, 09:41 PM, said:

Loren, on May 25 2009, 08:21 PM, said:

kenchan, on May 25 2009, 09:11 PM, said:

Thanks ... Loren

I have one more request.

Could you provide 2004 Cayenne V6 (955) Bi-Xenon headlight connector wiring diagrams.Please!

Thank!

ken

What suspension option - they are different.

Loren:

non air-suspension

[kenchan]

Loren:

I want to know the wiring connection method from (955) Pre-Facelift conversions to 957 Facelift .

Could you please help to fill in the below table of the unknown PIN No.



(955) PIN 1 - to .(957 Facelift) ???????
(955) PIN 2 - Turn Signal lead (+)
(955) PIN 3 - to .(957 Facelift) PIN 10
(955) PIN 4 - Parking Light Lead (+)
(955) PIN 5 - to .(957 Facelift) PIN 6
(955) PIN 6 - to .(957 Facelift) PIN 8
(955) PIN 7 - to .(957 Facelift) PIN 7
(955) PIN 8 - to .(957 Facelift) PIN 9
(955) PIN 9 - to .(957 Facelift) ?????????
(955) PIN 10 - Corner/parking/Turn Signal Ground (-)
(955) PIN 11 - to .(957 Facelift) ????????
(955) PIN 12 - to .(957 Facelift) ????????



Thanks

Ken

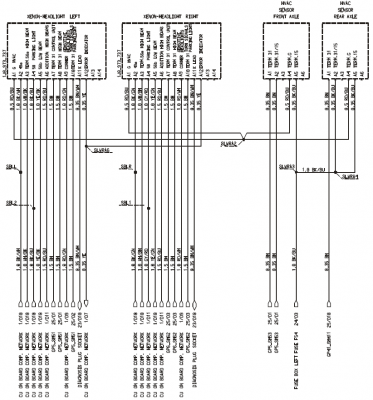

Attached thumbnail(s)

•

[kenchan]

Hi Loren


Could you provide 957 Taillight connector wiring diagrams.Please!

Thank!

ken

[Loren]

kenchan, on Jun 26 2009, 06:55 PM, said:

Hi Loren


Could you provide 957 Taillight connector wiring diagrams.Please!

Thank!

ken

Did you get the fronts to work?
If so, then how about sharing the information here?
