Trunk/Engine compartment release switch question...

[Joel Pirela]

Hi there!

Does anyone knows what are the 5 pins on the plug?

Each pin has a number

I'm flying blind as I don't know what does each pin on that plug...

This is for the door sill electronic switches for a carrera 997 in the US

many thanks in advance!

joel pirela

[Loren]

Model year? (the schematics are different)

[Joel Pirela]

Model year? (the schematics are different)

2007 GT3 US

Thanks!

joel

[Loren]

Those wires run through the Onboard Computer (OBC).

What do you want to do?

[Joel Pirela]

Thanks Loren....

What I want to do is to use the 997 version on my 996 car and just "jump" the correct cables from my 2 plugs on the 996's to the correct pins on the 997 socket. Since, I would think, the 997 version is "still" an electrical switch.

I'm still confused by the graph tough.... :huh:

[Loren]

Well, I doubt the wire colors would be the same on a 996 and 997. Schematics (and wires colors) sometimes change from year to year.

So it is likely best to have both schematics so you can see what goes where.

I will need the model and year of your 996 if you want the corresponding diagram for your 996.

[Joel Pirela]

Well, I doubt the wire colors would be the same on a 996 and 997. Schematics (and wires colors) sometimes change from year to year.

So it is likely best to have both schematics so you can see what goes where.

I will need the model and year of your 996 if you want the corresponding diagram for your 996.

That's correct... you are right. My car is a 2002 Carrera US model.

Thanks!

joel

[Loren]

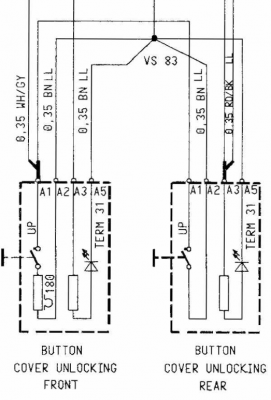

MY02 996 switches

[Joel Pirela]

MY02 996 switches

Thanks!

So I'm assuming that A3 and A5 of the 996 switches are the ones for the light, correct? Are the plugs on the 996 numbered or the BNLL means colors??? I guess I can figure it out with the WH/GY (white/grey) but BN LL and A3 pin doesn't have a color code.... or BN BN on the 997 plug....?????

Thanks for all the help!

joel
