996 convertible top 1999 cabriolet


Recommended Posts

  • Admin

FauIt code 05 Timeout error

This fault is only stored in the memory if an electric motor is actuated and does not reach the limit position within 6 seconds, or the potentiometers of the convertible top and CTCL do not show any change in voltage within 3 seconds.To check the micro-switch input signals, select the input signals which appear in the menu: Latch locked, Latch unlocked, Convertible top, Convertible-top compartment lid side flaps, Latching hook. Actuate the micro-switch manually (press it) to read the response in the bitmap positions of the tester display.


If the convertible top is between "Convertible top closed" and "Convertible top forward" and if the "Convertible top raised" input is connected to ground (contact for micro-switch of convertible-top latch does not lie against the top edge of the cowl panel and does not switch), examine the tension of the convertible-top covering using the left and right tension cables or, if necessary, loosen by 1 or 2 turns so that the contact lies against the top edge of the cowl panel and switches.

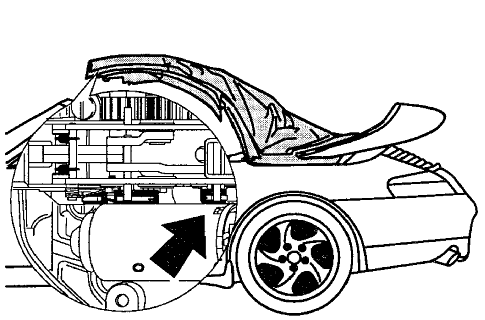

If the convertible top is in the forward position (diagram) on closing, check the response of the micro-switch - unlocked or not unlocked (small diagram) - in the convertible-top latch.If the micro-switch is defective, replace the convertible-top latch.

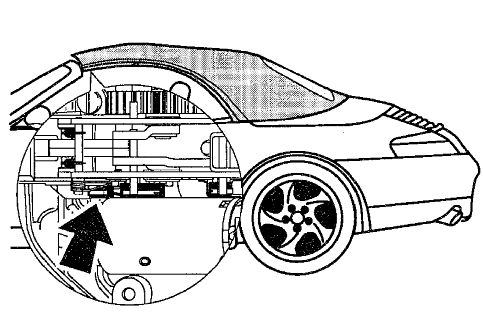

If the convertible top is in the rear position (diagram) on opening, check the response of the micro-switch - unlocked or not unlocked (small diagram) - in the convertible-top latch.If the micro-switch is defective, replace the convertible-top latch.

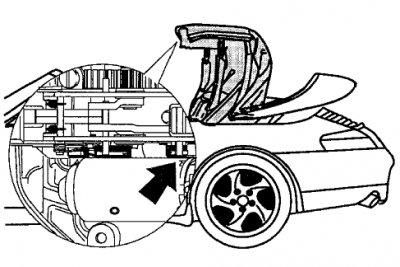

If the convertible top is in the center front position (diagram) on closing, check the response of the micro-switch - not locked or locked (small diagram) - in the convertible-top latch.If the micro-switch is defective, replace the convertible-top latch.

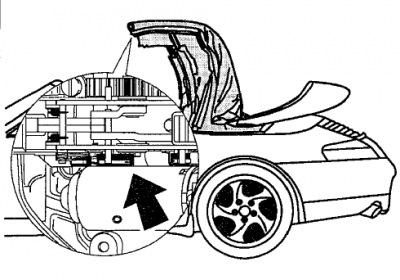

If the convertible top is in the center rear position (diagram) on opening, check the response of the micro-switch - not locked or locked (small diagram) - in the convertible-top latch.If the micro-switch is defective, replace the convertible-top latch.

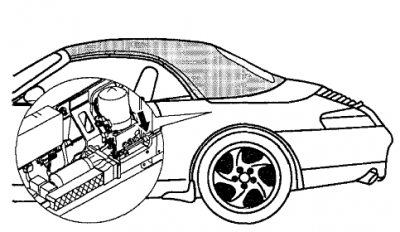

If the convertible top is in the closed position (diagram) and the latching hook has been actuated, check the response of the convertible top (CTCL) micro-switch or adjust the Bowden cable of the central lockinghook in such a way that the micro-switch switches.A defective micro-switch must be replaced.

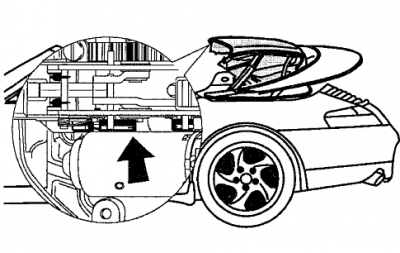

If the convertible top remains in a position not described here:

6. Switch ignition off and remove ignition key. With test adapter 9619,9636 and pin template 9636, measure the resistance of the convertible-top compartment lid potentiometer at row 3, pins 1, 3 and5 with the ohmmeter.If the display: infinite ohms appears the potentiometer and drive motor must be replaced.

7. Switch ignition off and remove ignition key. With test adapter 9619, 9636 and pin template 9636, measure the resistance of the convertible-top potentiometer at row 1, pins 12, 21 and 24 with the ohmmeter. If the display: infinite ohms appears, the convertible-top potentiometer must be replaced.

Nothing like a short answer eh..? ;)

Link to comment
Share on other sites

  • Admin

I am not sure what you need so here is a short list:

On the top frame

996-613-313-02 Potentiometer -- US MSRP $80.38

On the flap

996-561-685-00 Microswitch - Left US MSRP $152.05

996-561-686-00 Microswitch - Right US MSRP $152.05

On the windshield frame

996-613-795-01 Microswitch - US MSRP $37.68

Link to comment
Share on other sites

  • 1 month later...

I see the info for the micro switch on the frame but what I was talking about are the switches inside the latch. There are four inside there and a small circuit board.

Also where us the exact location of the potentiometer . Hardto tell from the diagrams.

Many thanks for help.

Dennis
