buy and replace front drive shaft on a c4 -1999 tiptroninc


Recommended Posts

Hi everyone!

One of my front outer CV-joint is broken on my 996 c4 -1999 tiptronic. and as i understand I need to replace the hole driveshaft. So my question is if someone here have experience of this? Is it a DIY jobb or am I better of taking it to a mechanic? any special tols involved?

And any tips on where to buy/ renovate the driveshaft preferably in Europe?

Thanks

Johan

Sweden

Link to comment
Share on other sites

Johan,

Yes, this should be an easy DIY project. You'll need to know the torque settings for the universal bolts. Do you have a Bentley's manual, if not that would be a good investment to make before any project. If you need the torque information I can look it up for you.

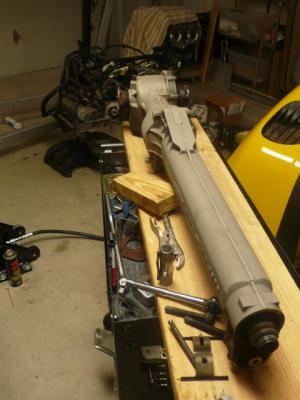

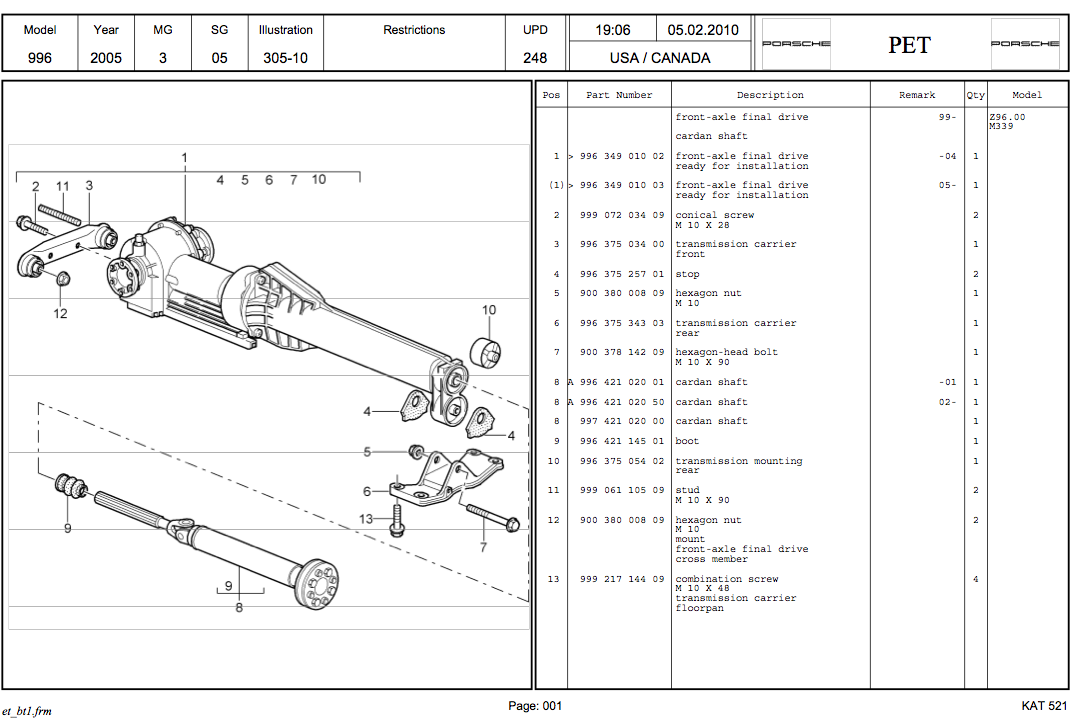

It appears that the drive shaft comes as a unit. I have one for sale after removing my front diff, but any savings would be offset by the shipping cost.

post-85466-0-44479600-1398349544_thumb.pJohan,

post-85466-0-95558200-1398349792_thumb.j

Link to comment
Share on other sites

I think you are talking about replacing the whole CV axle not the front differential driveshaft. Pelican has a pretty good write-up:

http://www.pelicanparts.com/techarticles/Porsche-996-997-Carrera/41-TRANS-Replacing_CV_Joints/41-TRANS-Replacing_CV_Joints.htm

The hardest part is removing the large nut holding the axle onto the hub which will be 80% of the job. I like to loosen it slightly with the wheels on the ground prior to taking things apart (wheel center cap removed). Make sure you use a new axle nut and tighten it to spec. I believe it is 340 ft-lbs, so the right tools are needed.

Link to comment
Share on other sites

the problem with DIY and high toque numbers is we forget the whole foot pounds thing, a 3.4 foot long wrench needs 100 pounds of pull. a 100 foot long wrench would need 3.4 pounds of pull. so do the math. I use a fish scale to pull the wrench to the required poundage.

Link to comment
Share on other sites
