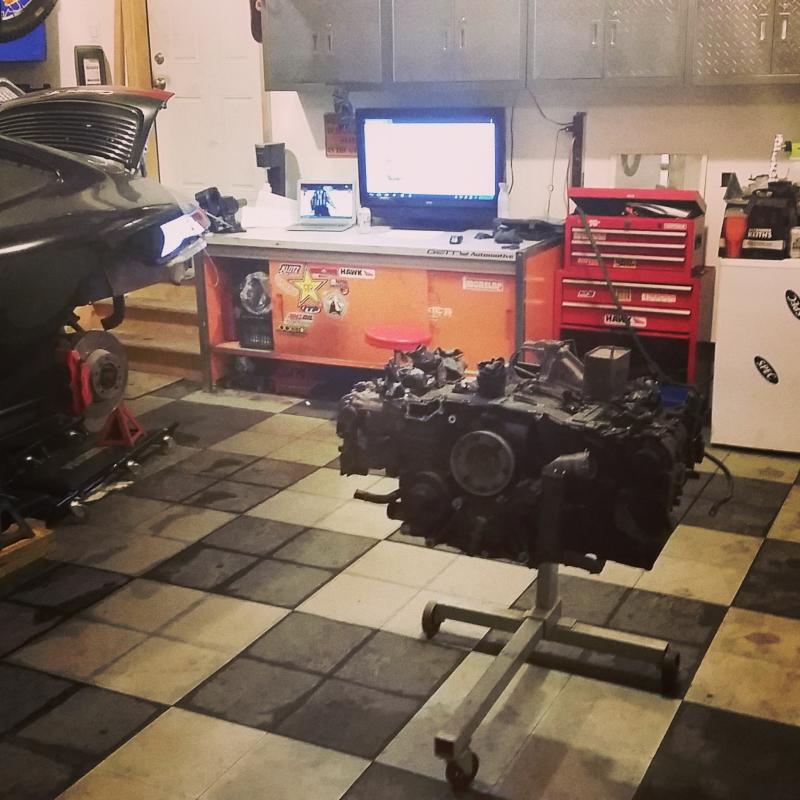

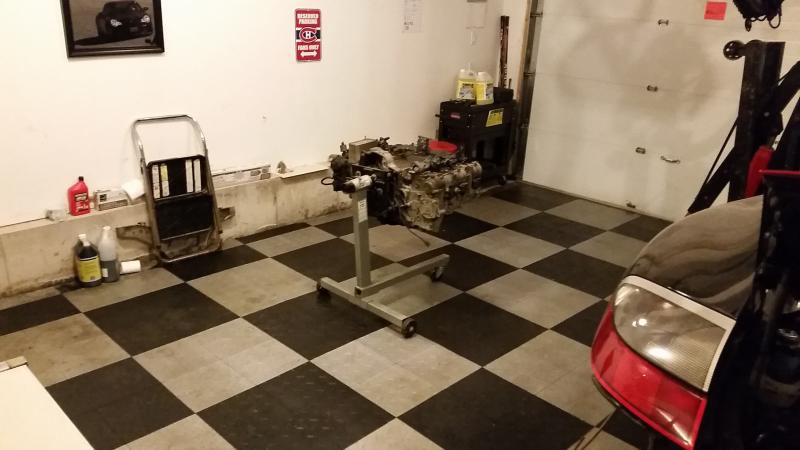

EDIT: thread was originally made to find the right tools...now ive changed it to host my engine tear down progress check out the pics!

I've started the engine removal/disassembly process and have started shopping for tools.

I know I can make my own, buy have chosen to buy a set, the thing is, I'm not sure what kit will work with my motor.

Looking at a kit like this, but I see the note on the description saying it won't work with a 3.6

http://www.amazon.com/gp/aw/d/B00L0ZOZ0A/ref=mp_s_a_1_sc_3?qid=1420817758&sr=8-3-spellπ=AC_SX110_SY165_QL70

Could one of you gurus point me to the right kit?

Thanks!

Edited by AWDGuy

Share this post


Link to post
Share on other sites
    You can remove these ads by becoming a Contributing Member.

I've started the engine removal/disassembly process and have started shopping for tools.

I know I can make my own, buy have chosen to buy a set, the thing is, I'm not sure what kit will work with my motor.

Looking at a kit like this, but I see the note on the description saying it won't work with a 3.6

http://www.amazon.com/gp/aw/d/B00L0ZOZ0A/ref=mp_s_a_1_sc_3?qid=1420817758&sr=8-3-spellπ=AC_SX110_SY165_QL70

Could one of you gurus point me to the right kit?

Thanks!



I think this is the one you are looking for:




Share this post


Link to post
Share on other sites

Thanks JFP! (Again)

I'll have to find the rest separately then.

Edited by AWDGuy

Share this post


Link to post
Share on other sites

Looked around the net and couldn't find much....Any pics of this on a 3.6 motor?

Also....the engine disassembly how to on pelican show that they remove the IMS bearing before splitting the cases. Is this actually required? Can I not undo the flange bolts and split the case that way?

Share this post


Link to post
Share on other sites

Looked around the net and couldn't find much....Any pics of this on a 3.6 motor?

Also....the engine disassembly how to on pelican show that they remove the IMS bearing before splitting the cases. Is this actually required? Can I not undo the flange bolts and split the case that way?



I do not have any pictures of the tool on a 3.6L  engine, but perhaps someone else reading the thread does.



I'm not sure why they did it that way, do you have a link to their disassembly?

Share this post


Link to post
Share on other sites

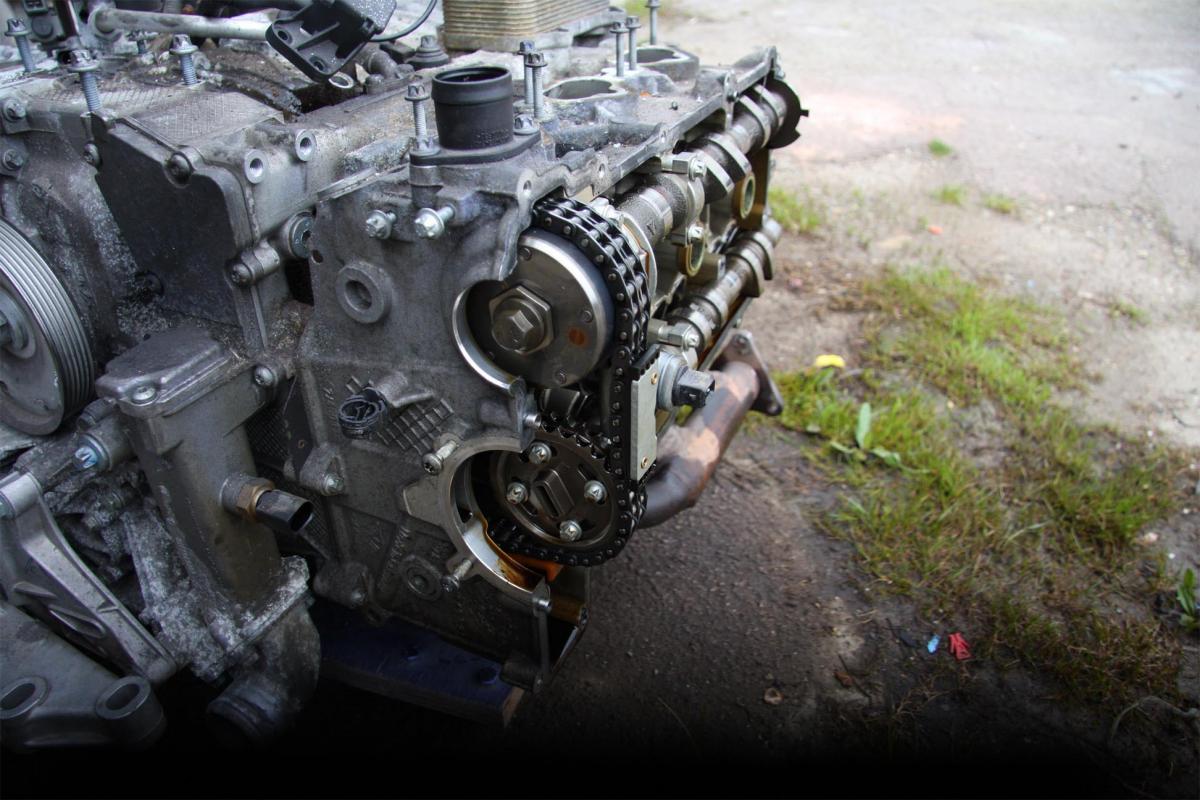

I borrowed a pic from this thread http://www.renntech.org/forums/topic/32451-engine-rattle/# which shows the timing actuator on the intake cam. Note the engine is not a variocam+ though because the intake cam is single lobe. However, it has the same timing actuator as in our variocam+ 3.6L



Here's my understanding of the tool. Note the BIG hex (part of the timing actuator sprocket) and the center bolt on it. The cam tool JFP showed is used to hold that big hex so you can unbolt the center bolt to seperate the sprocket from the intake cam. Similar to a crankshaft pulley holding tool that holds the pulley in place when you loosen the center bolt on the pulley.



The elongated piece on the tool is adjusted to rest on the edge of the head case (exhaust side) to get leverage and lock the tool in place. This way the tool can be used even when the engine is in the car. If the engine is removed from the car, all you need is a regular tool to hold that BIG hex in place.

post-5282-0-11469000-1424887636_thumb.jp

Edited by Ahsai

Share this post


Link to post
Share on other sites



I just read that, and still have no idea why that did it that way, other than to show how to remove an IMS bearing without using the now accepted tools.



Once the cams are released and the heads are off, there is no load on the IMS shaft, so pulling the bearing is not required before splitting the cases.   I would remove the flange cover first, however.

Share this post


Link to post
Share on other sites

Amazing. Thanks guys.

Think I will change the title of this thread :)

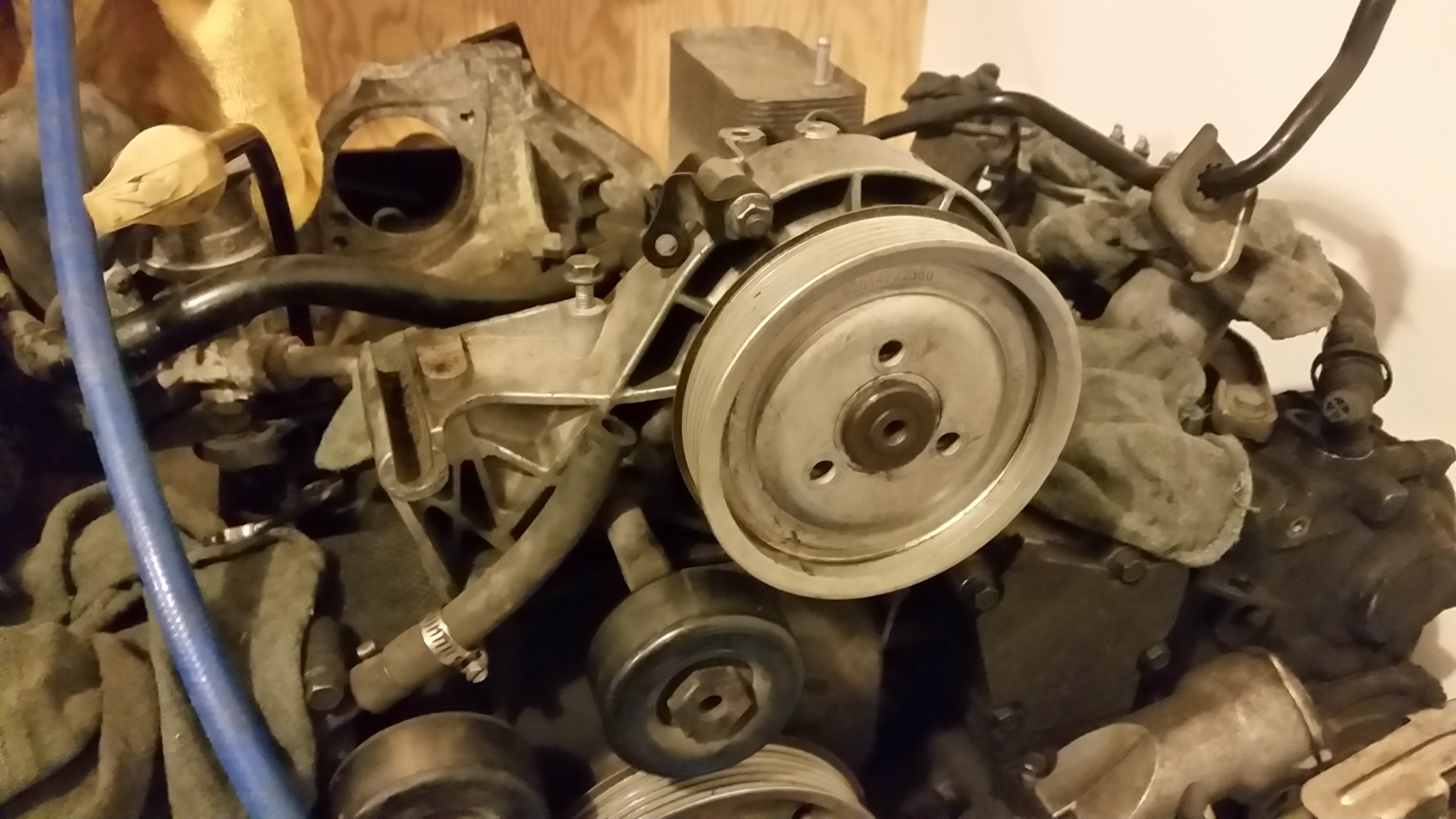

How do I get this pulley off? Is that some sort of nut/washer on in the center I need to remove? There nothing that fits in there, just a round hole.


Share this post


Link to post
Share on other sites

Jeez...took some wacks with a rubber mallett but it came off....though I need a new pulley now :(

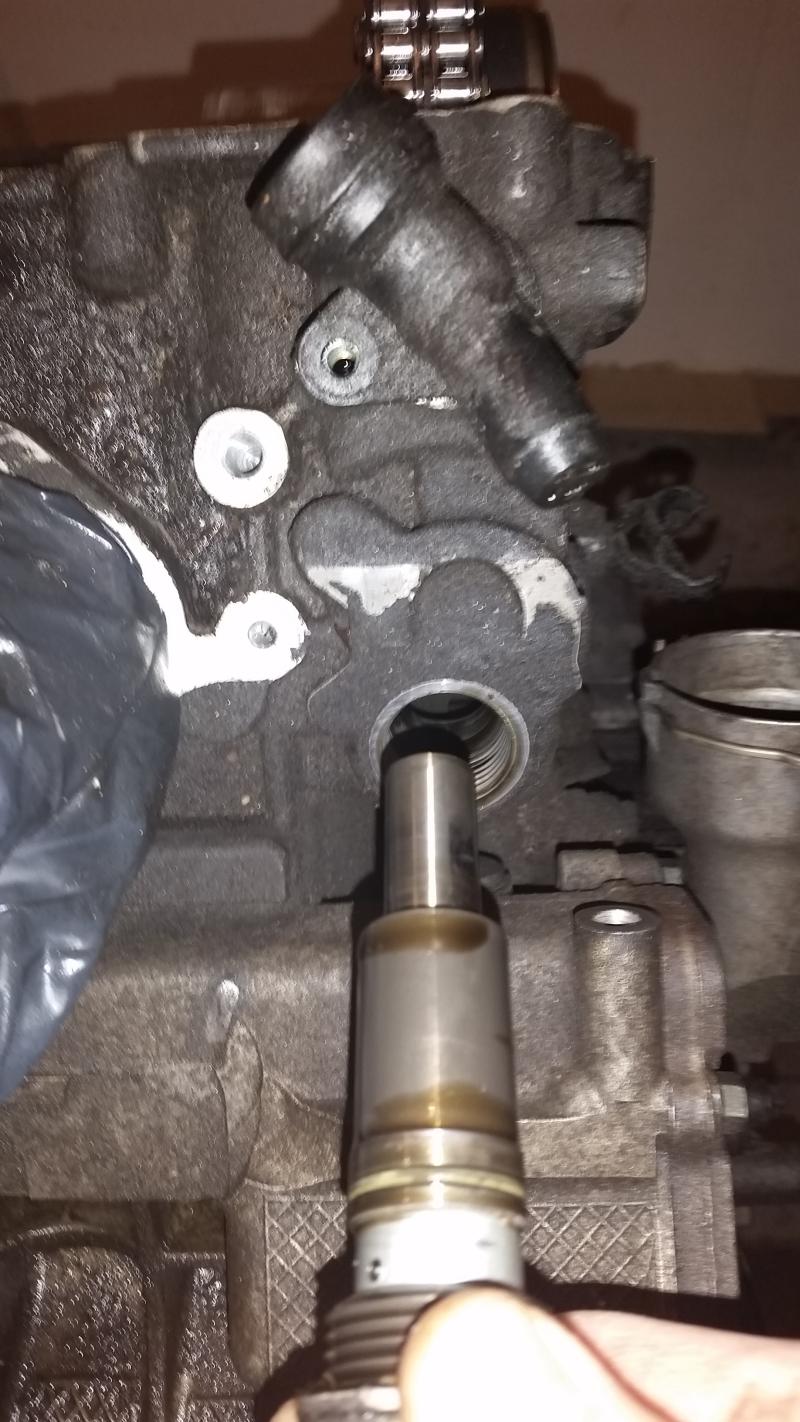

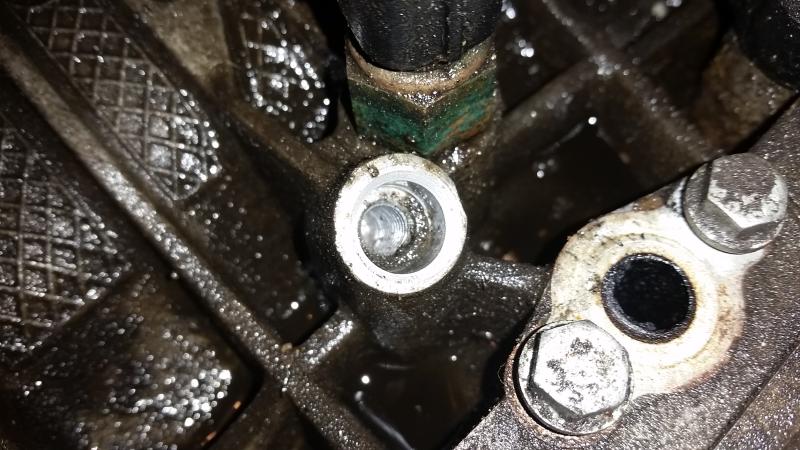

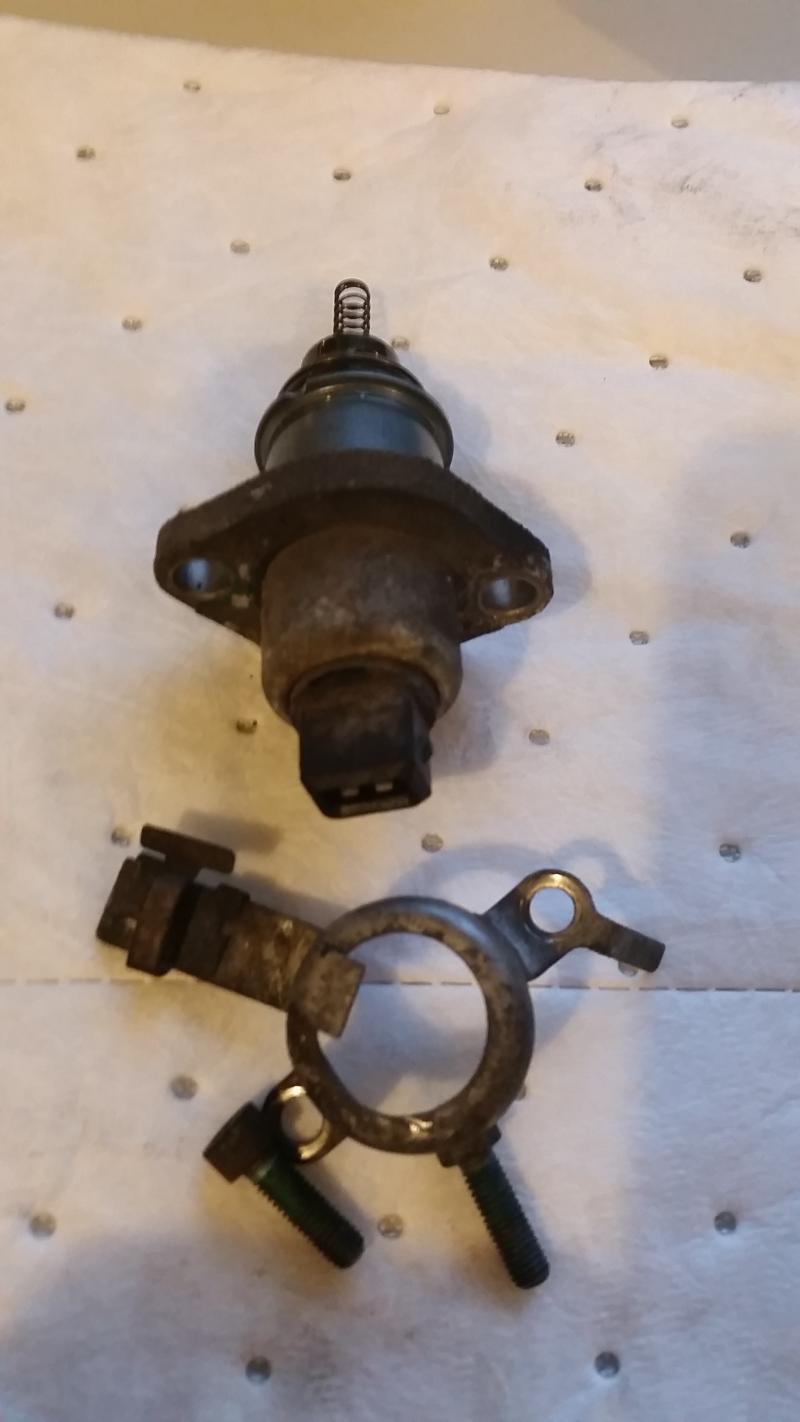

Now...I've notice something off. This thing here is a hollow insert. With nothing going to it (& had nothing going to it). Pretty sure something goes here as when I remove the spacer, the hole is threaded, and it's filled with grime. Same side as my "bad" side.



Could this be a source of grime getting into the cylinders?

Edited by AWDGuy

Share this post


Link to post
Share on other sites

I think that's the spacer for the a/c compressor (the bolt at the back of the compressor).

Share this post


Link to post
Share on other sites

Ah yes. You're right.

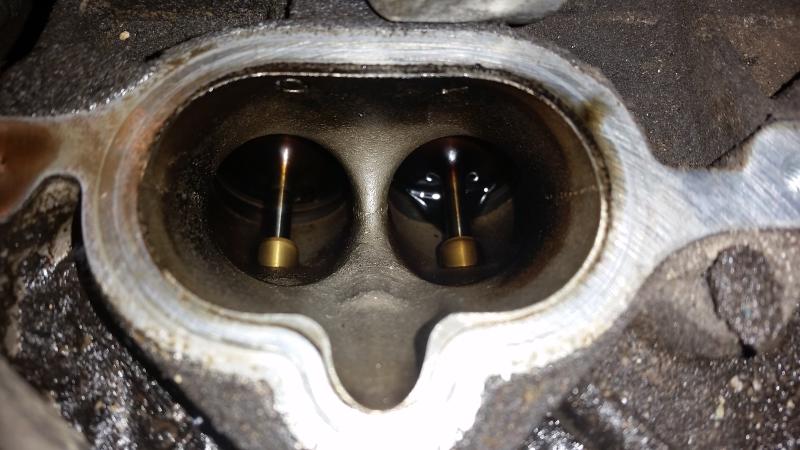

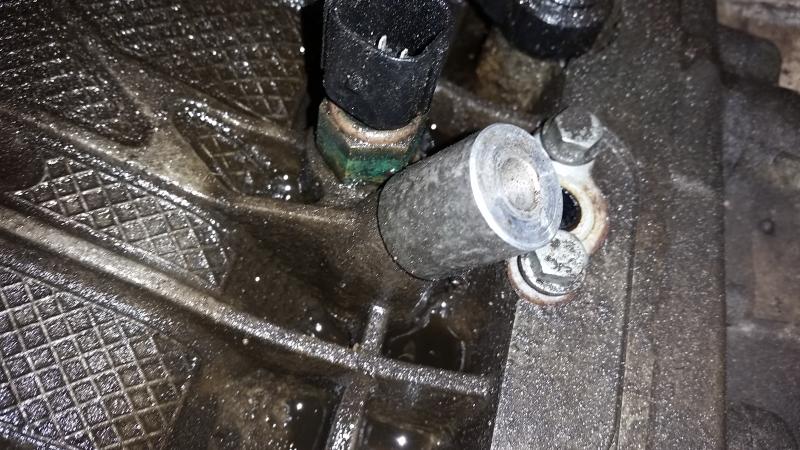

Bad side of the engine. The 4 & 6 are full of oil. Bad pics...but the shiny black stuff is oil.




Edited by AWDGuy

Share this post


Link to post
Share on other sites

Not quite sure yet. I am assuming from my symptoms that I have scored/tapered cylinders and the rings are toast, letting oil by. Obviously have some seal issues with the valves also....

Hoping to have the heads off this weekend. ...maybe even have the case split. Hope to see a smoking gun.

Edited by AWDGuy

Share this post


Link to post
Share on other sites

Not quite sure yet. I am assuming from my symptoms that I have scored/tapered cylinders and the rings are toast, letting oil by. Obviously have some seal issues with the valves also....

Hoping to have the heads off this weekend. ...maybe even have the case split. Hope to see a smoking gun.

Very cool and keep the photos coming please. It's rare to see a 3.6 tear down thread. You could be the first on Renntech! :)

Share this post


Link to post
Share on other sites

Will do Ahsai! I've had a hard time finding 3.6 specific threads. Those links you gave me to the shop manuals will help I'm sure. Already printed a bunch out.

More to come this weekend!

Share this post


Link to post
Share on other sites

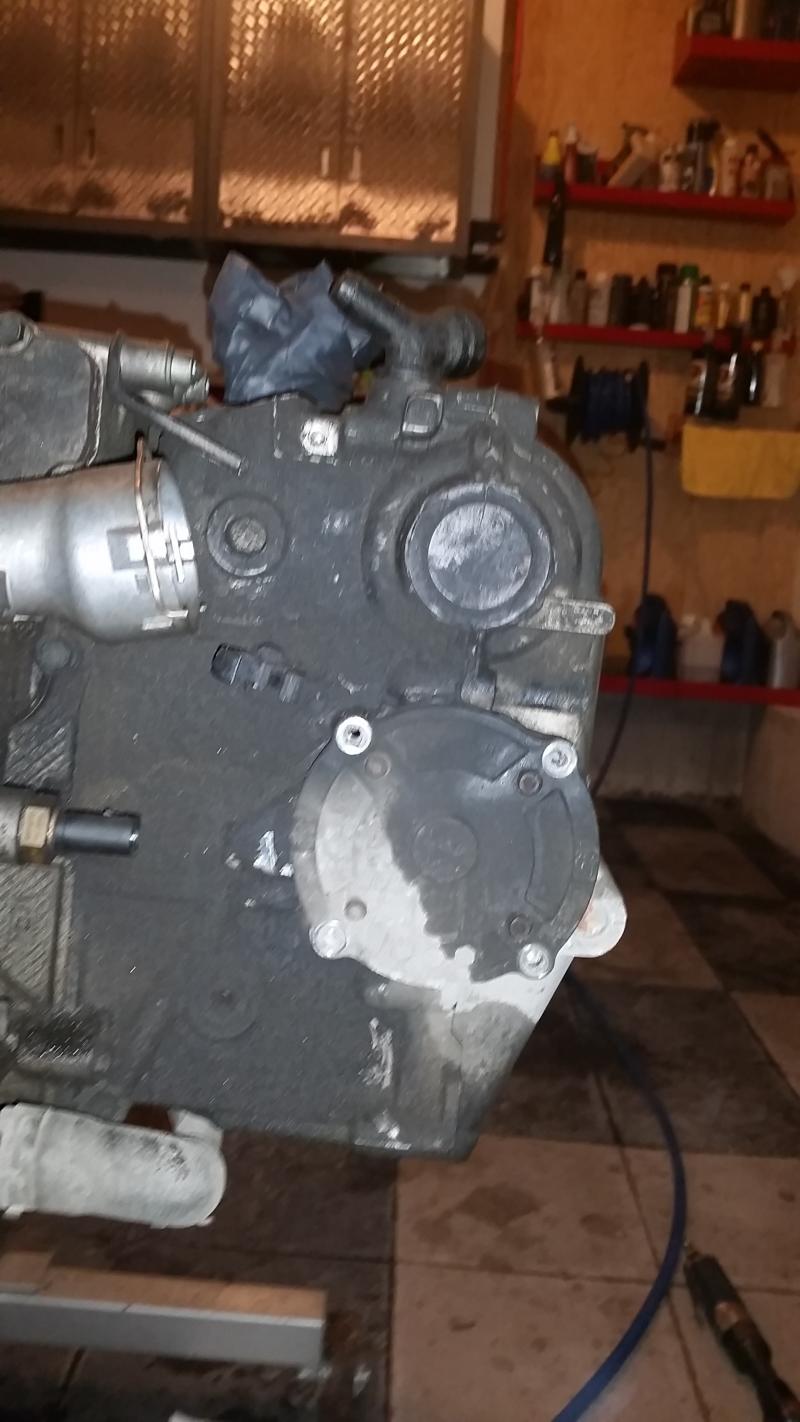

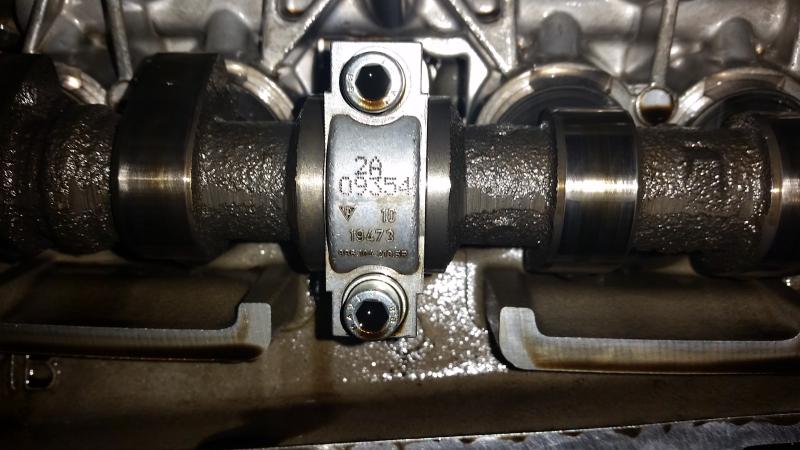

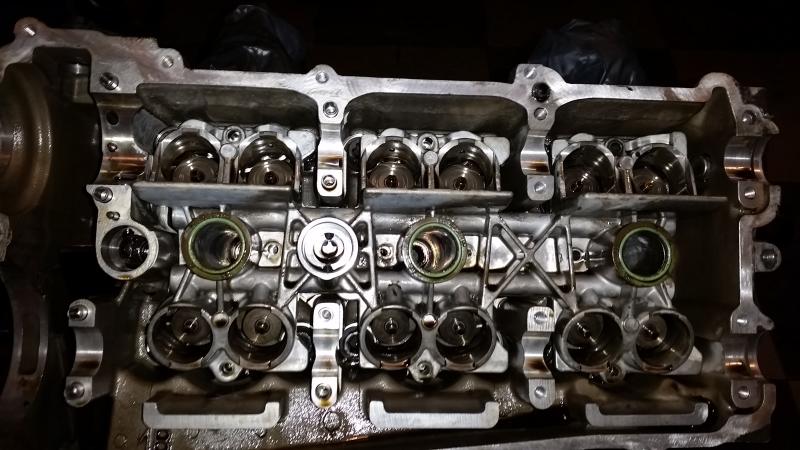

Got the bad side done this weekend.  Got caught with no 14mm hex bolt for the timing chain tensioner, and had to wait until sunday morning to go buy that socket.  and of course the store has every individual socket except that one, and of course that one is only available in a complete set @ $49.99...lol

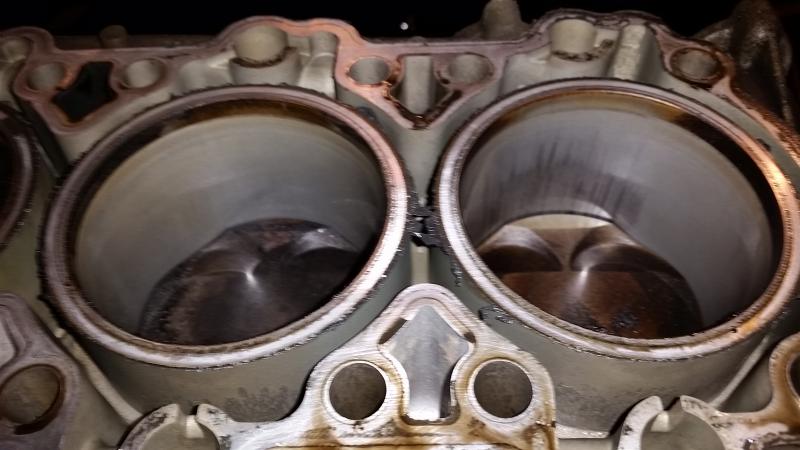

As suspected; scored cylinders,  Looks like 4 & 5 are toast.  Didn't take pictures of the spark plugs but you can imagine what they looked like after seeing those heads.














































































Share this post


Link to post
Share on other sites

Nice photos and good progress. What are the symptoms again and do you plan to re-sleeve and rebuild this engine?

Share this post


Link to post
Share on other sites

Symptoms are:

Ticking/knocking noise:

-high oil consumption. Long trips were not bad at all. Short trips, I would go through 5L of oil in 1k km of driving.

-left hand side exhaust tips were black a day after cleaning them

-Ocassionaly blue/greg smoke on start up, especially if it was just started up (say; moved a spot in the driveway and moved back)

The plan is to save my pennys and yes, eventually rebuild this motor with lne nickies and je pistons.
