wink6312

1997 Boxster Door Lock Mechanism

Recommended Posts

Hello,

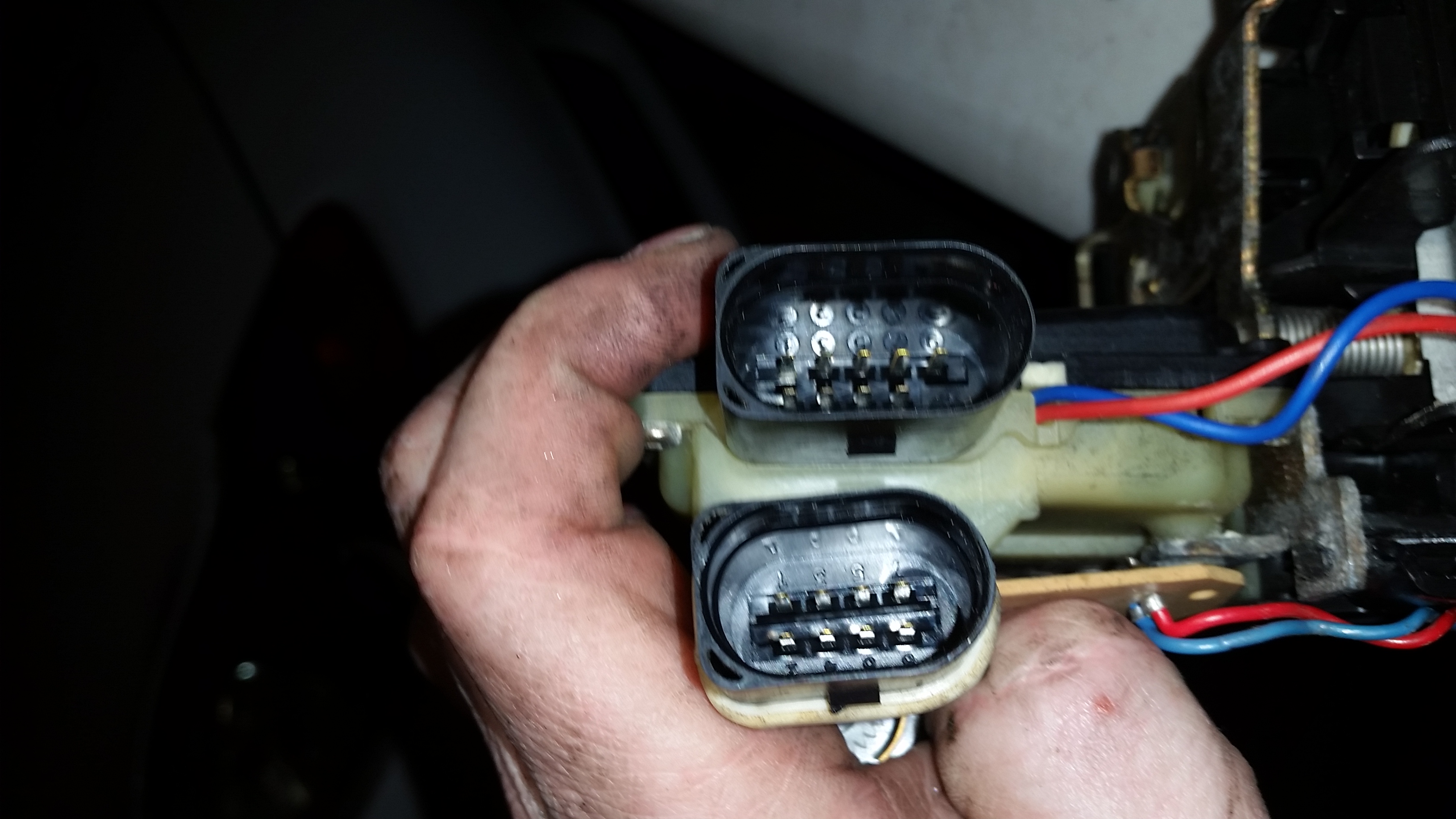

I just received a driver's side (L) door lock mechanism replacement for my 1997 Porsche Boxster. However, the wiring harnesses/connectors are different. Everything else is exactly the same. Please see attached photos. Any recommendations? Maybe an adapter?



The part number is worn off of the old one but the numbers I do see are different, PA 66 30% GF (new), PA 66 30 FG< (old)



Any ideas would be much appreciated.



Share this post


Link to post
Share on other sites
    You can remove these ads by becoming a Contributing Member.

Does your car have a factory alarm?  Could be you a lock from a non-alarmed car or visa versa?

 Another possibility is that your car is a late 1997 car which means it might have 1998 parts - the door locks are different between 1997 and 1998.

You can check the driver's door sticker to see what month your car was made - and the same for the donor car.

Share this post


Link to post
Share on other sites

My car was made in April 1997. Apparently, early model Boxsters only come with 8 pin actuators. I replaced the driver side actuator and now I am having the issue of both windows rolling all the way down when I open the driver side door. I also replaced the convertible top latch switch hoping that could have solved the problem but no luck. Any ideas?

Share this post


Link to post
Share on other sites
