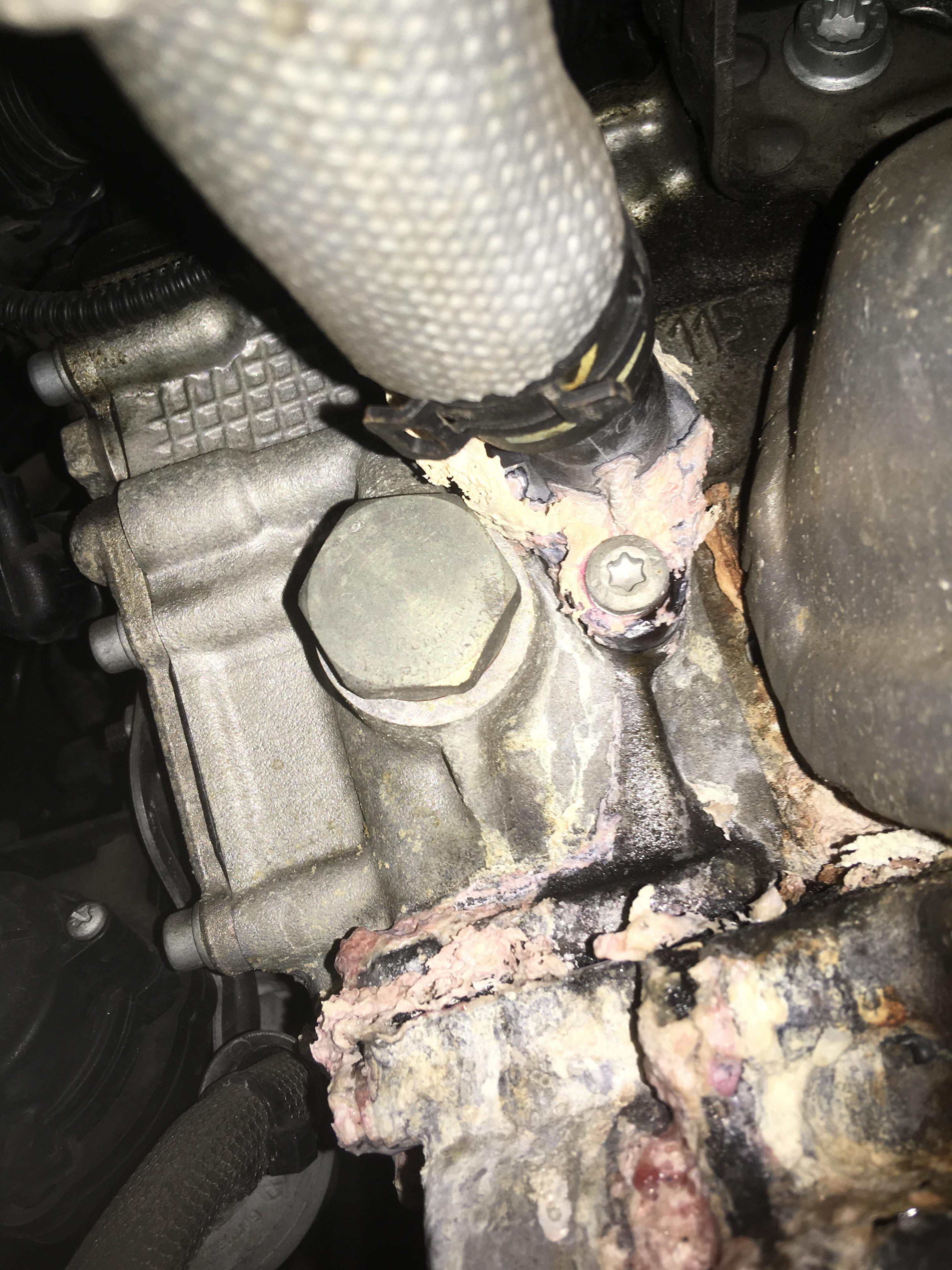

The common coolant pipe issue seems to only affect the V8 Cayenne's. I'm wondering if my coolant leak is a common problem too. I've been losing coolant on my 3.6 V6 Cayenne at a fairly slow rate compared to the other more common issue. I'm having to top it off about once every month or two. Last weekend I was changing the oil and started investigating the leak. It looks to be coming from a black plastic coolant hose fitting on the back of the engine, passenger side.



Has anyone seen this problem before? I'm wondering if there is just a bad o-ring behind that fitting or if the whole part needs to be replaced. And if anyone knows the part number for this I would greatly appreciate that too!


Thanks



Link to comment
Share on other sites

    You can remove these ads by becoming a Contributing Member.

The common coolant pipe issue seems to only affect the V8 Cayenne's. I'm wondering if my coolant leak is a common problem too. I've been losing coolant on my 3.6 V6 Cayenne at a fairly slow rate compared to the other more common issue. I'm having to top it off about once every month or two. Last weekend I was changing the oil and started investigating the leak. It looks to be coming from a black plastic coolant hose fitting on the back of the engine, passenger side.

Has anyone seen this problem before? I'm wondering if there is just a bad o-ring behind that fitting or if the whole part needs to be replaced. And if anyone knows the part number for this I would greatly appreciate that too!

Thanks

I've had the same problem in my 2008 v6. After removing the 2 bolts I saw it had a rubber gasket. Waiting for the dealership to call me when it comes in. (Was the cheapest there)
It's technically for the thermostat. It's called a flange socket and sealing ring. Here's the part #'s 95510623100 Flange Socket
95510643100 Sealing Ring


Sent from my iPhone using Tapatalk
  • Upvote 1
Link to comment
Share on other sites

1 hour ago, Mr.Flip said:


I've had the same problem in my 2008 v6. After removing the 2 bolts I saw it had a rubber gasket. Waiting for the dealership to call me when it comes in. (Was the cheapest there)
It's technically for the thermostat. It's called a flange socket and sealing ring. Here's the part #'s 95510623100 Flange Socket
95510643100 Sealing Ring


Sent from my iPhone using Tapatalk



Thanks for the PN! Doesn't look very expensive, my local dealership has it for $26 and the o-ring is less than $2.



I think the thermostat is on the back of the 3.2 V6 but for the 3.6 V6 the thermostat is on the side of the engine (driver side). I know this because I replaced it during my cooling system refresh at 90k miles. However, there does seem to be a housing for something back there, I'm just not sure what it is..

  • Upvote 1
Link to comment
Share on other sites


Thanks for the PN! Doesn't look very expensive, my local dealership has it for $26 and the o-ring is less than $2.

I think the thermostat is on the back of the 3.2 V6 but for the 3.6 V6 the thermostat is on the side of the engine (driver side). I know this because I replaced it during my cooling system refresh at 90k miles. However, there does seem to be a housing for something back there, I'm just not sure what it is..

I thought so too but when I pulled up the diagram it was listed under :
Porsche Cayenne M55.01 Water Pump Thermostat Housing


Sent from my iPhone using Tapatalk
Link to comment
Share on other sites

2 minutes ago, Mr.Flip said:


I thought so too but when I pulled up the diagram it was listed under :
Porsche Cayenne M55.01 Water Pump Thermostat Housing


Sent from my iPhone using Tapatalk



Interesting. When I did the cooling system refresh I replaced the water pump (front of engine) and thermostat (side of engine) so that confuses the hell out of me why they would call that a water pump thermostat housing if neither of those components are back there.



Was it a fairly straight forward job? Doesn't look like I would have to remove much to get to it. I may take some pictures and make a DIY for the job.

Link to comment
Share on other sites

35 minutes ago, shonuff said:



Interesting. When I did the cooling system refresh I replaced the water pump (front of engine) and thermostat (side of engine) so that confuses the hell out of me why they would call that a water pump thermostat housing if neither of those components are back there.



Was it a fairly straight forward job? Doesn't look like I would have to remove much to get to it. I may take some pictures and make a DIY for the job.

Yeah it was an easy job. All I did was remove the plastic covers on the passenger side of the engine bay, the exhaust shield is held with one bolt that, once removed, will pull off the clips it holds onto in the bottom. From there I just felt the two bolts (one on top one on bottom) of the plastic flange, if I'm not mistaken they are both either 12mm or 13mm.

Edited by Mr.Flip
Link to comment
Share on other sites

  • 9 months later...
  • 2 months later...
  • 8 months later...
  • 4 months later...

Thanks to Mr. Flips post with part #s. I was able to fix mine.  Real easy, just be sure to "seat" the 30 torx bit into bolts, the are somewhat hard to reach and seem soft metal.



Approximately 2 cups of coolant came out that I captured with a bowl then returned it after the job was done. (DO NOT remove coolant cap during process; coolant is under pressure and more will come out).

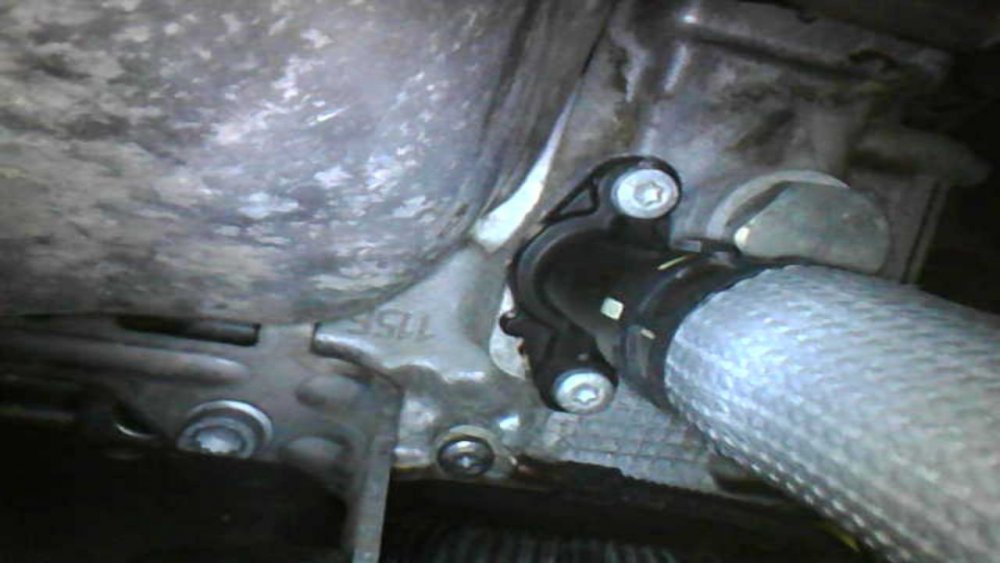

Before and after pics.



Link to comment
Share on other sites

  • 1 year later...
  • 5 months later...

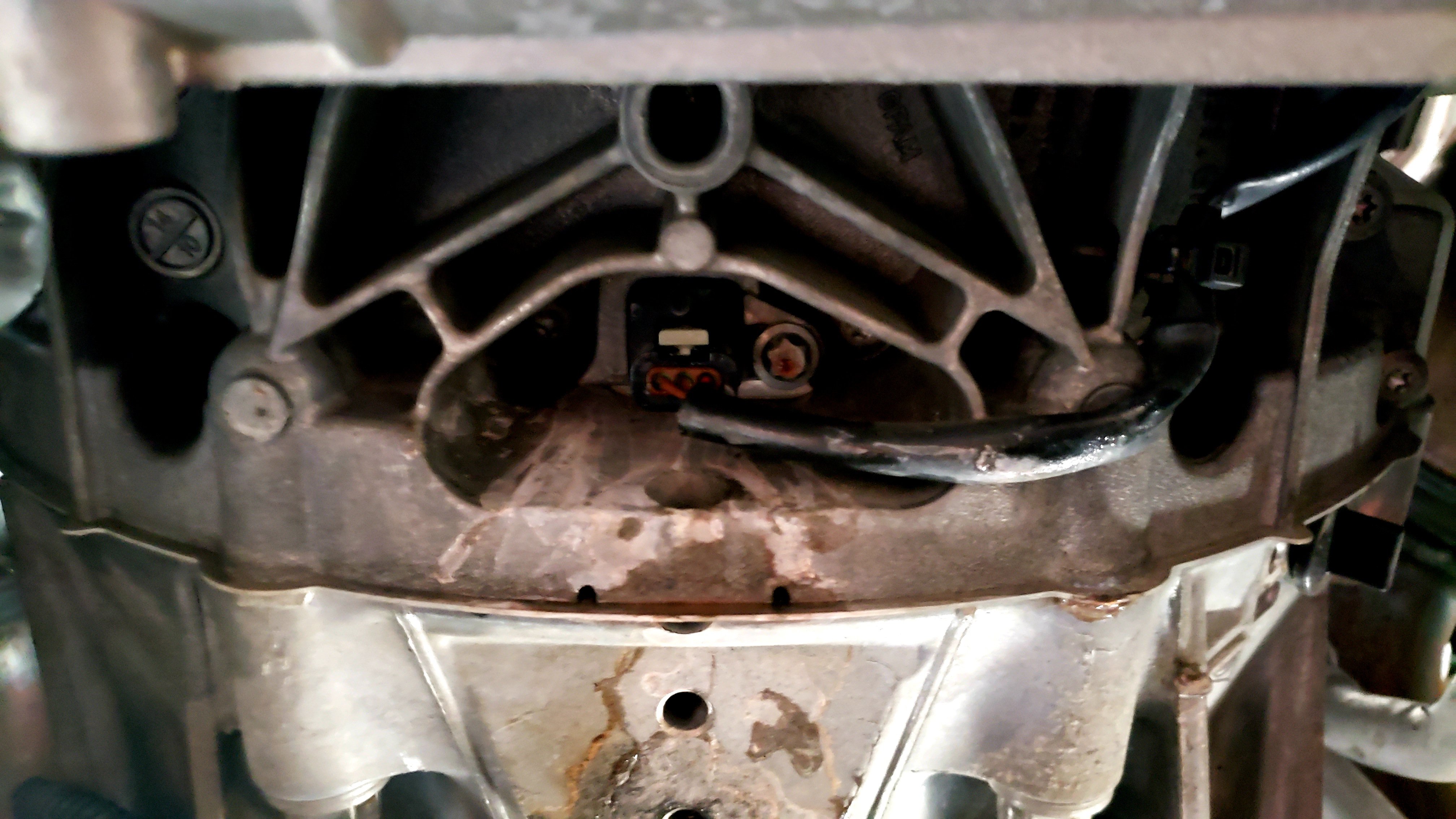

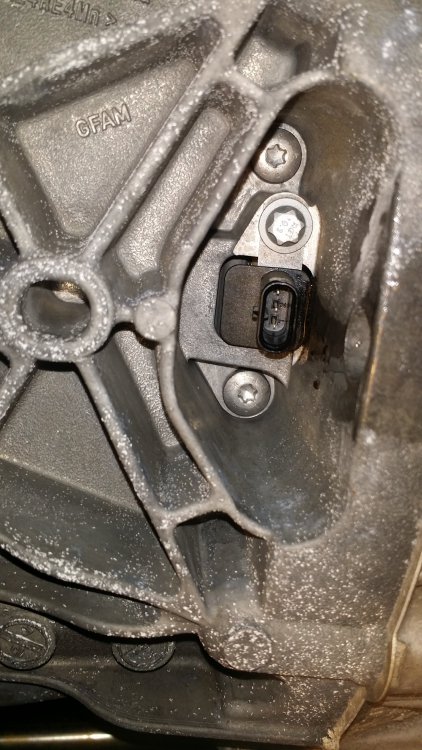

Hi, does anyone know if the 3.6 twin turbo engine is the same? I just found a coolant drip in my 2015 CayenneS. Is it easier to get to from the top or bottom? I tried to find it, but couldn't see it. Here is a pic of the leak location that I took while under the car.  I'm freaking out a bit because I bought the car 2 weeks ago, just hit 99k.


Link to comment
Share on other sites
