Instrument cluster eprom
peter-997 replied to M Richard Weiss's topic in 986 Series (Boxster, Boxster S)

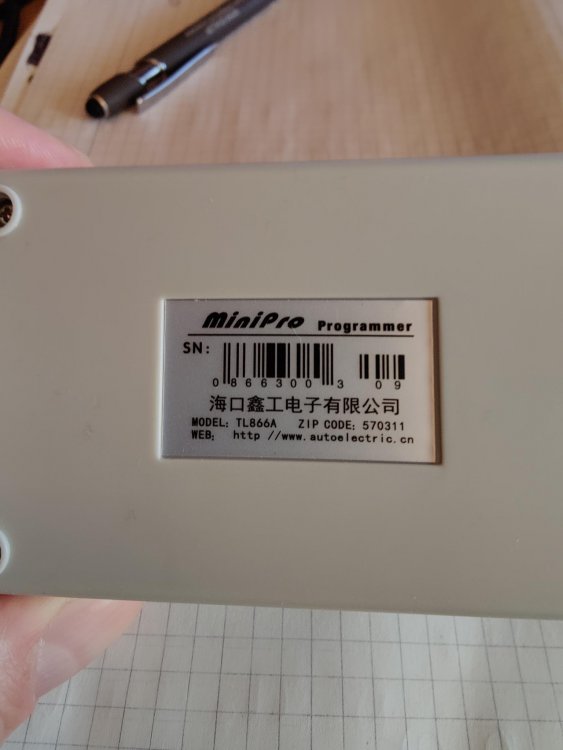

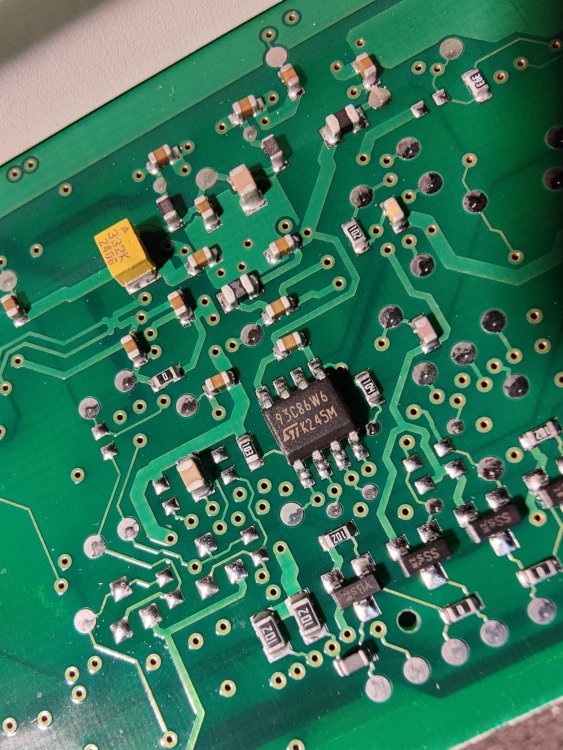

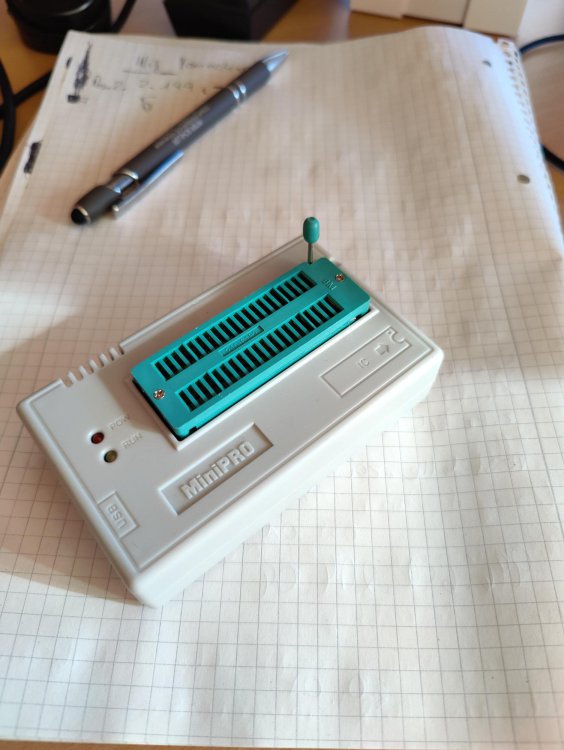

Hi. I want to read out my 93c86 chip of my BoxsterS 986 facelift instrument cluster. I have TL866A programmer. Can sombody tell me if it is possible to read and write the chip with this programmer? I've changed my instrument cluster to a version with the better graphic dot matrix display but want to correct the mileage. Is it right the mileage is stored in lines 300&310 and 500&510 in a 2kb dump file? My thougt is to copy these lines to the new cluster. Any recommendation to use the programmer? I found a pdf instruction. The author recommend to short the crystal on the PCB. Am I right I dont need any power supply to the PCB? It is enough to connect the 93c86 with an IC clamp? Thanks
-
Richard do you have a wiring diagram for cruise control for a 2003 Facelift BoxsterS? I want to double check it. Thanks
-
Installing cruise control and OBC stalks to my 2003 BosxterS Tiptronic with segment cluster. The OBC works great but with cruise control I have some questions. In PIWIS I only find a "Tempostat" entry in DME coding section. In the instrument cluster coding section I only find the OBC entry but no Tempostat entry. In DME I have changed to cruise control. When I switched on the ignition and push the cruise control button on the stalk nothing happens. Must the engine run and must the car driving to set cruise control? I can see the LED on the PCB of the instrument cluster.
-
If it is possible to change the 7 segment to dot matrix with soldering skills? With which ordering options Porsche installed the dot matrix? Only if you ordered OBC and/or PCM2? Why the 7 segment also is prepared for OBC? Was this option also awailable or never used? Therefore only for us enthusiast? 😜
-
When I enable the OBC I also want to enable cruise control. My instrument cluster doesn't have the Tempostat LED in the speedometer gauge. Is cruise contol possible without the LED?
-
I have successfully coded my Instrument cluster to OBC. I also have the 7 segment version. After coding I can't see any changes Do I need the stalk? I thougt the outside temperature is shown after coding. I also have coded PCM2/CDR23 to enable because my car has CDR23 with Bose from factory installed. Does the entry has any impact?
-
Thank You very much. However, this is not a backup of my devices or is it possible to play this setup back into the ECUs later in case coding failed.
-
-
Noob question of Piwis. How can I save my coding of the ECUs? I was in DME unit and want to save the coding. The system confirmed thats it is saved. But where I can find the file? Is it possible to export this file?
-
Hi. Searching for the "order code" of a 2003 Boxster S Tiptronic LHD RoW (German Version). Is it also 986320? Is there a overview or list of all order codes?
