Posted (edited)

Hi all!

New Porsche owner here 🙂

Got myself a 2001 Boxter S in speed yellow with 31k miles, super excited!!

First project will be to replace the CDR-220 with a new aftermarket head-unit so i can use appleplay etc.

My Porsche appears to have the factory Amp and the Door Speakers.

I purchased the new radio, wiring harness (Metra 70-1787), dash kit, USB input for carplay, and the antenna adaptor but was wondering about the wiring from the aftermarket radio to the harness.



In the CDR-220 i see a yellow plug and a black plug. (pictures attached)

Is it just a matter of matching up the wire colors on both the new head unit adaptor with the wiring harness? Are there any gotchas that i need to watch out for?
Sorry, complete noob here with wiring and just looking for some basic advice.

Thanks all






Edited by Marcus C.
Link to comment
Share on other sites

  • Marcus C. changed the title to Stereo Replacement Wiring Info
1 hour ago, Duster said:

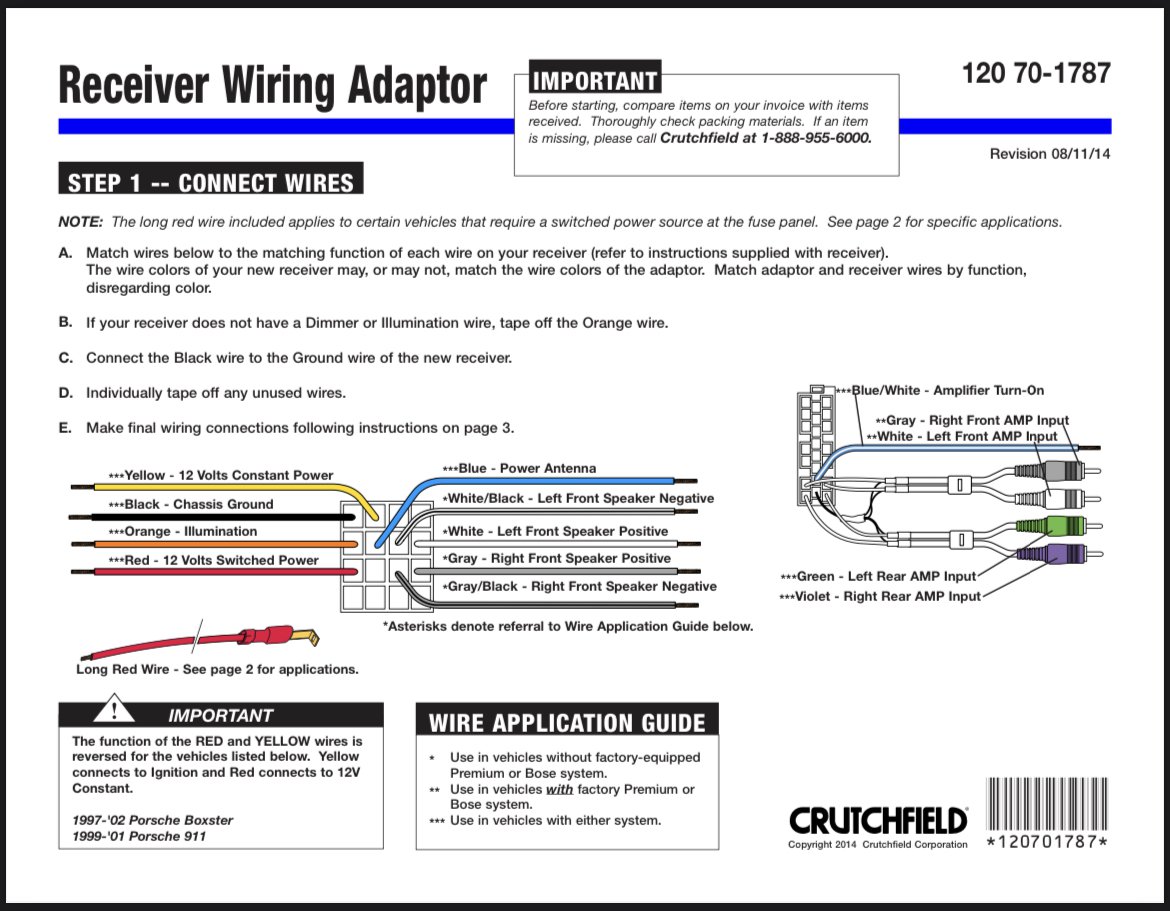

Wiring diagram from Crutchfield for the Boxster.


Thanks Duster! I will give this a shot tomorrow 🙂 Looks like the big issue is the swap between the red and yellow wires which i will do for the harness to the stereo wiring. Phew glad you shared this.

Link to comment
Share on other sites

Success! I was able to wire up the new stereo and everything is working 🙂 Next Is to dremel out the dash tomorrow. I'll post pics once completed.

Thanks again Duster, I don't think I will be adding a backup camera though!

Cheers

Link to comment
Share on other sites
