fjpgt3

PCM 2.1 Retrofit Trouble. Help!

Recommended Posts

I bought a PCM 2.1 on Ebay.

It installed easily and powered right up, looking very good. Went to dealer for code activation, we got trouble...

It seems my 2007 GT3 with base sound CDR-24 unit has a small built in amp. The PCM does not. Tech says adding an amp is a big ($) job. Lots of wiring harness work.

Anybody have any experiences or solutions?

My lovely PCM maybe up for sale rather quickly if We cannot solve this one.

Tech is going to try Porsche engineers for ideas.

Disappointed DIY guy.

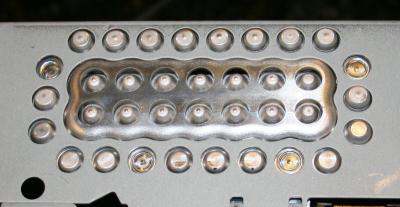

Pics below show back of my base CDR-24 aluminum dots are heat sink for small amp. My PCM does not have this.

Thanks for any insights to my problem.



Share this post


Link to post
Share on other sites
    You can remove these ads by becoming a Contributing Member.

I bought a PCM 2.1 on Ebay.

It installed easily and powered right up, looking very good. Went to dealer for code activation, we got trouble...

It seems my 2007 GT3 with base sound CDR-24 unit has a small built in amp. The PCM does not. Tech says adding an amp is a big ($) job. Lots of wiring harness work.

Anybody have any experiences or solutions?

My lovely PCM maybe up for sale rather quickly if We cannot solve this one.

Tech is going to try Porsche engineers for ideas.

Disappointed DIY guy.

Pics below show back of my base CDR-24 aluminum dots are heat sink for small amp. My PCM does not have this.

Thanks for any insights to my problem.

To better understand your problem it would be useful if you could find the part number written on the unit.

Share this post


Link to post
Share on other sites

It's too bad you didn't fully comprehend the complexity of simply adding a PCM.

To be honest I didn't know there was a 'plain' PCM and a PCM for Bose.

I suspect we'll see your PCM on eBay soon since the cost & trouble of enabling the required harness(s) seems prohibitive.

I hate to see stories like this.

Share this post


Link to post
Share on other sites

The seller was quite gracious about my Mistake. His ad clearly stated for Bose, but I got wrapped up in what version of PCM it was and looked past it.

He has cancelled our transaction at full refund, and I ship it back to him.

A shame it really worked and looked perfect. Now I want one even more. The install itself is pretty simple.

If you are in the market for a PCM 2.1 with Bose, check ebay. It and the seller are a winner.

Thanks for the comments.

Still looking...

Share this post


Link to post
Share on other sites

I think even the non-Bose PCM uses an external amp - it's just not a Bose amp. I'm sure I read that somewhere.

It is still going to be a bit of work / wiring to make it functional.

Bose PCM head unit: 997-642-143-xx

non-Bose head unit: 997-642-141-xx

Share this post


Link to post
Share on other sites

There are two types of PCM. Those for bose equipped cars and those without bose. The PCM units that are non bose will still work with the soundpack amplifier as it takes the signal from the speaker outputs. The BOSE equipped PCM s do not have the speaker outputs enabled , it uses the MOST link to send the signal to the BOSE amp to which the speakers are connected. Better to buy the correct PCM for your car than try and re engineer or reconfigure the unit.

Share this post


Link to post
Share on other sites
