957 Bi-Xenon connector PIN diagrams..Help !


Recommended Posts


cayenne 957 headlight connector PIN wiring diagrams

Model year and US/Canada or RoW please...

Sorry !!! Loren

My Car 2004 Cayenne V6 (955) DIY conversions 957 Turbo Facelift

Can you give me 957 headlight connector wiring diagrams.Please!!!!!!!!!!!

Thank!!!!!!

Link to comment
Share on other sites

  • Admin

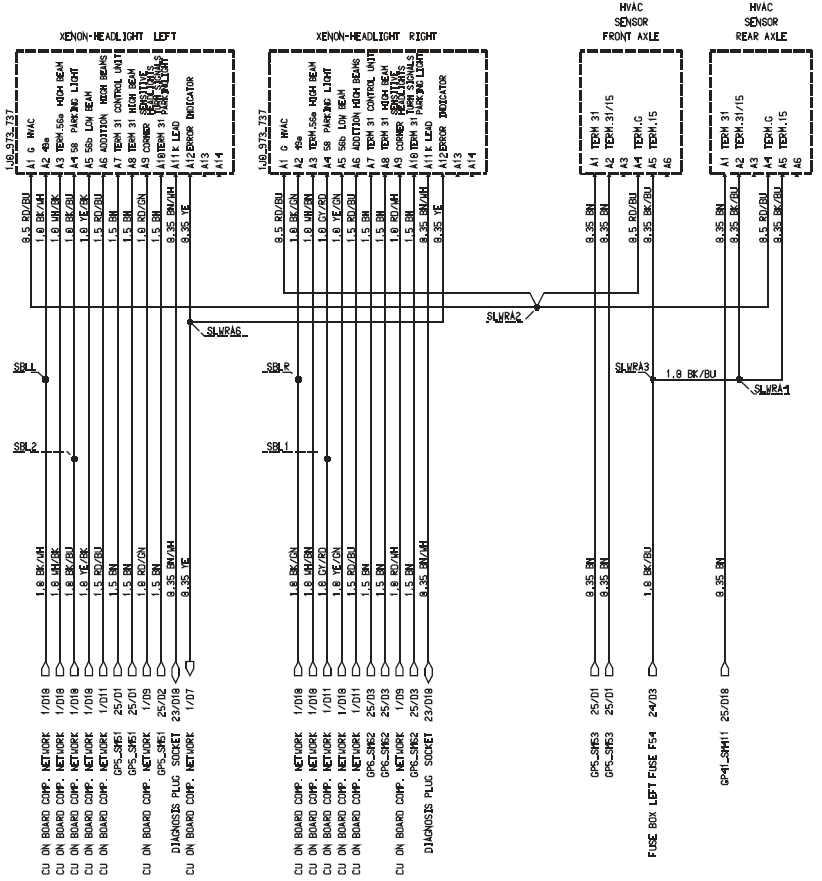

cayenne 957 headlight connector PIN wiring diagrams

Model year and US/Canada or RoW please...

Sorry !!! Loren

My Car 2004 Cayenne V6 (955) DIY conversions 957 Turbo Facelift

Can you give me 957 headlight connector wiring diagrams.Please!!!!!!!!!!!

Thank!!!!!!


Link to comment
Share on other sites

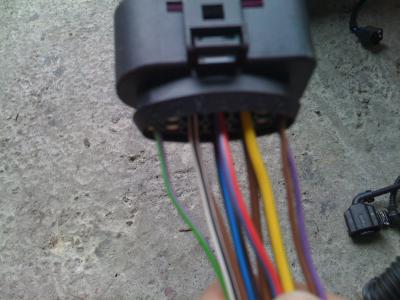

Loren:

I want to know the wiring connection method from (955) Pre-Facelift conversions to 957 Facelift .

Could you please help to fill in the below table of the unknown PIN No.

(955) PIN 1 - to .(957 Facelift) ???????

(955) PIN 2 - Turn Signal lead (+)

(955) PIN 3 - to .(957 Facelift) PIN 10

(955) PIN 4 - Parking Light Lead (+)

(955) PIN 5 - to .(957 Facelift) PIN 6

(955) PIN 6 - to .(957 Facelift) PIN 8

(955) PIN 7 - to .(957 Facelift) PIN 7

(955) PIN 8 - to .(957 Facelift) PIN 9

(955) PIN 9 - to .(957 Facelift) ?????????

(955) PIN 10 - Corner/parking/Turn Signal Ground (-)

(955) PIN 11 - to .(957 Facelift) ????????

(955) PIN 12 - to .(957 Facelift) ????????

Thanks

Ken


Link to comment
Share on other sites

  • 4 weeks later...
  • 8 months later...

Hello I write from La Coruña Spain, I'm turning 05 cayenne turbo kit I'm installing a 957 magnum'm with the headlights and rear lights but can not get the intended mount the rear mount but does strange things to change position wires but still not working oh well to reprogram the PBX or change it? and my car headlights xenon source is and I'm riding with xenon source other Model 07 hand you an outline of how you did your though my car is European version I think I can be helpful also forwards tubiste to reprogram anything or change any PBX?

Link to comment
Share on other sites
