Air Filter Change Instructions


Recommended Posts

  • Admin

Air Filter Change Instructions


Note: Part numbers sometimes change without notice. Always double check with your supplier that you have the latest part numbers. Parts you will need: 1 ea 996 110 131 71 Air Filter or equal (BMC or K&N Filter) Tools you will need: 10 mm socket or wrench Regular screwdriver Phillips screwdriver Remove the complete air cleaner assembly. Remove the hexagon-head bolt M6 x 34. Remove the hose clamp on the throttle body. Pull off plug from hot film mass air flow sensor and completely remove a



Link to comment
Share on other sites

  • 4 years later...

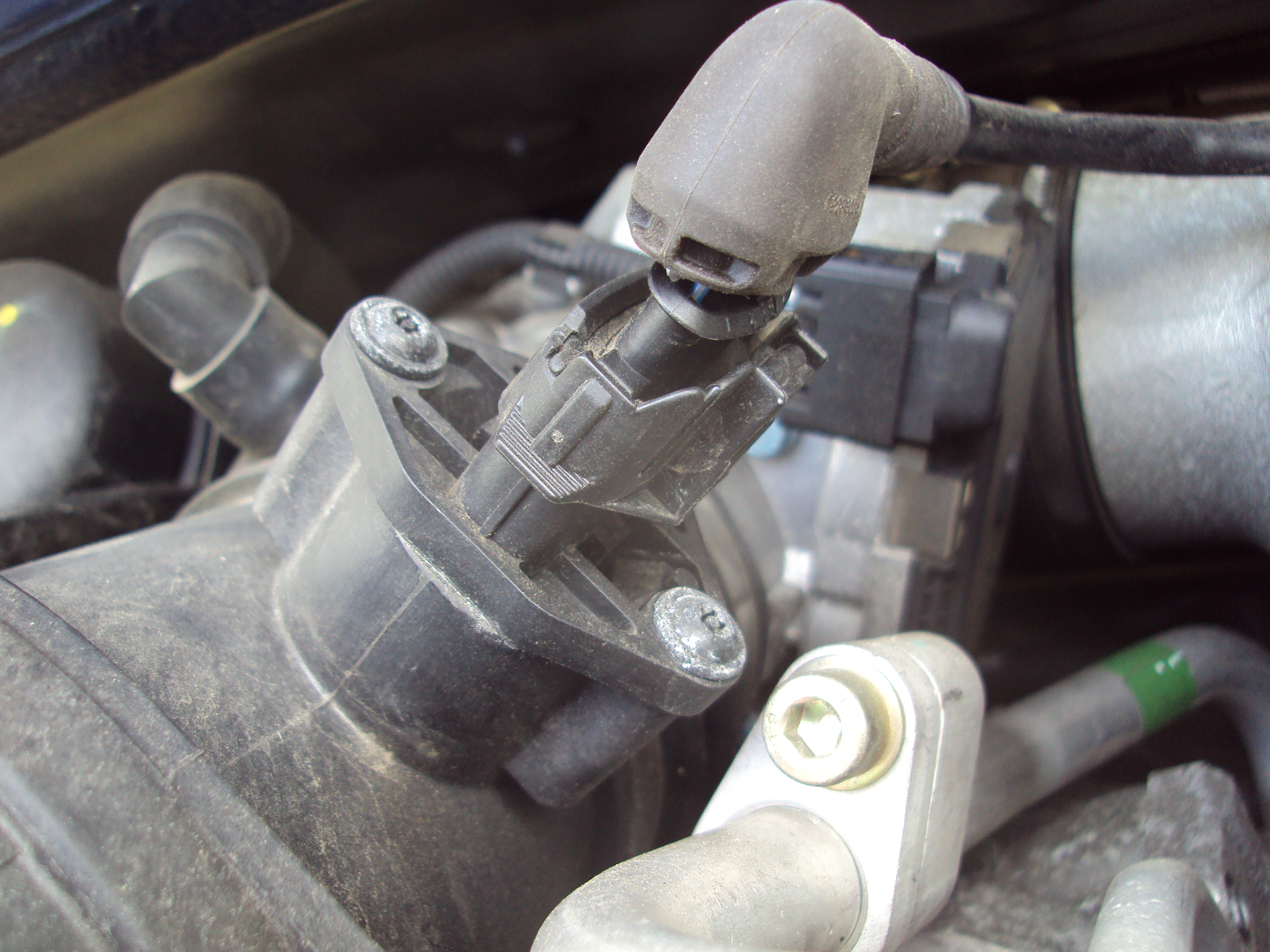

I may be being stupid but I cannot figure out how to remove the MAF plug. There looks to be some latches, but I can't see how to release them. Anyone done this who can help?

post-363-024381300 1276511794_thumb.jpg

Link to comment
Share on other sites

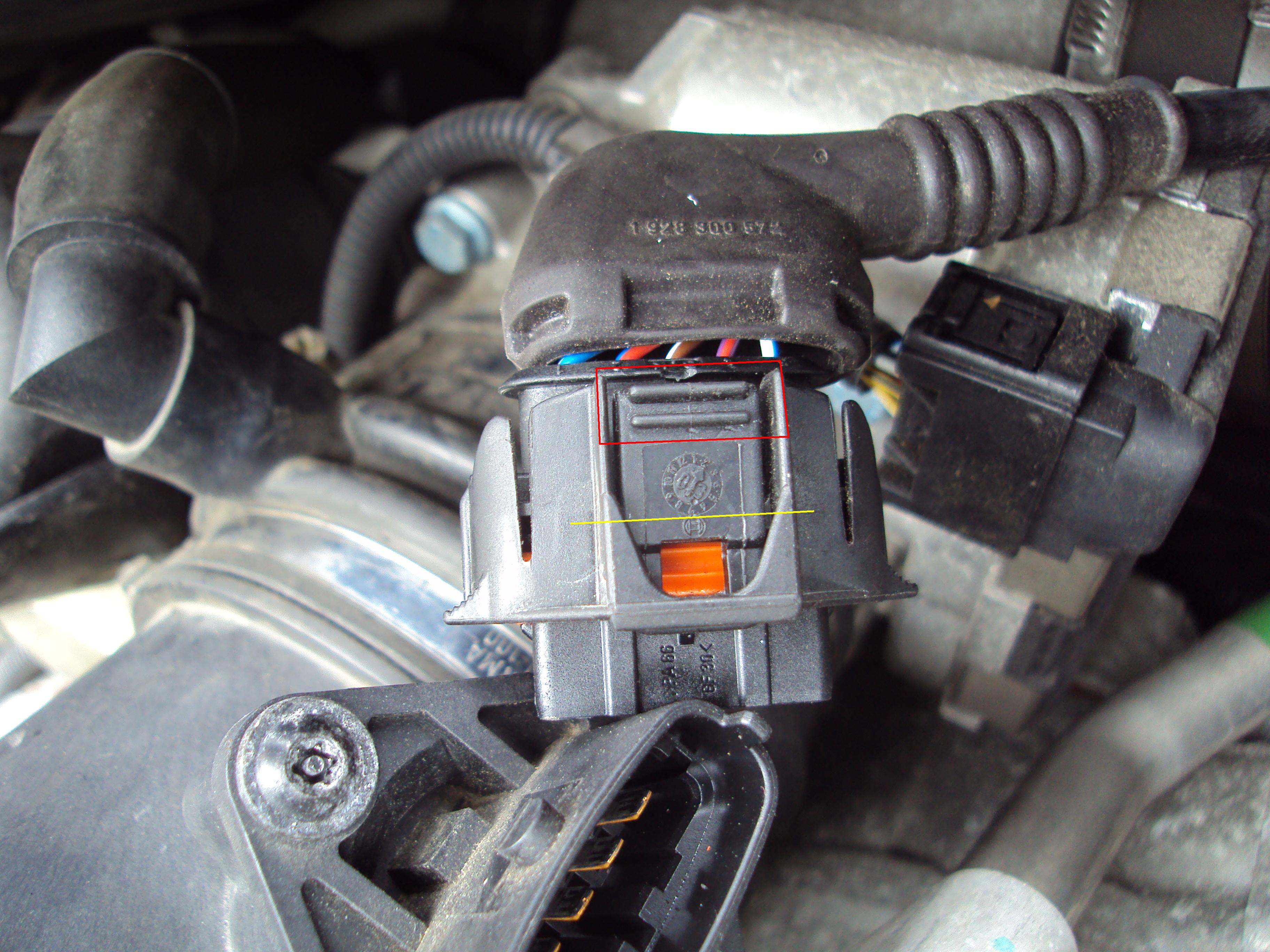

I finally managed to remove the plug. I hope the attached photo may help other owners, as it is not obvious how to do it.

I have marked up the picture. You press hard on the section enclosed in the 'red box'. The latch hinges along the yellow line. When you get it right you will feel and hear the latch releasing, you can then remove the plug. It does help to push the plug down as you press on the latch.

post-363-087380100 1276522277_thumb.jpg

Link to comment
Share on other sites

  • 9 months later...
