Everything posted by txhokie4life

  1. If you undid the throttle body, check the connections around that area, as was mentioned, any vacuum leak .. or basically any source of unmetered air (air after the maf) can cause this behavior
  2. Check your fulcrum pins. They sometimes fail I don’t have a picture, but there are two. Location depends on which 5sp or 6 sp. try a google search to find pix of these pins. mike
  3. Check your radiators like you planned. check your water pump, see if there is seepage. you can remove the serpentine belt and see if it turns freely. lastly, it could be your thermostat sticking. mike
  4. Cheaper to buy than build a race car. I’d check with woody of woodies parts for door qtr, bumper and mirror. Especially if rear qtr is not affected
  5. Thanks to all those who helped! NOLA Motorsports bound tomorrow morning. I’m stoked and nervous, but most of all relieved I can hit the track thx to everyone’s help! cheers, Mike
  6. If I remember correct - it was either where the pin to the chain guide (flip the yellow arrow), or the triangle just below it.
  7. In my case the bolt fell down and backwards into the hole, then managed to roll forward into the webbing of the engine -- it was in the first webbing just below the hole if you can find a picture of the engine -- you might be able to try there -- not as tight quarters as trying to get down to the IMS. I think it was along side the clutch, not behind it... but its been 4-5 years -- so I maybe mis-remembering. In my case it was a royal PITA since I did my CPS in the driveway -- only to F it up -- and then had to trailer it to my buddy's shop to get it on the lift. I never started it or even attempted to start it while it was in there.

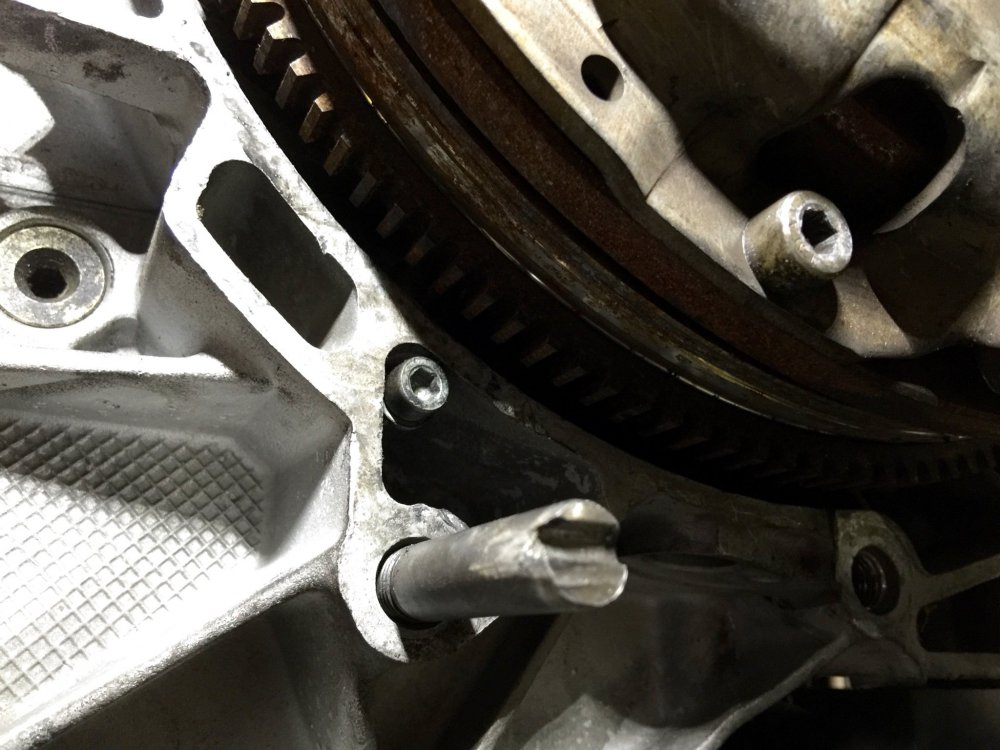

  8. I don’t have the picture that showed exactly where the bolt rolled to ... it’s in the other phone you can see in the first picture ? but it you can see an example of the webbing it fell into. so if you can get you magnet to go into the whole and then bend forward and check those crevices... you might have a chance.. you might consider borrowing a boroscope and see if you can locate it. otherwise, my recommendation is to drop the tranny, which is what I ended up doing. Murphy has never been a friend of mine when it comes to mechanical stuff... so I was pretty sure how all that was going to end up if I had left it there. mike
  9. Oh, I fished for that **** thing for a LONG time with a magnet -- to no avail. Sorry to be the bearer of bad news -- but I don't think there is an opening in the bottom, so once its in there -- I don't think its coming out (and that's not a good thing). I think I have some pics on my phone -- maybe if you can see the possible locations -- you might be able to fish more productively. M
  10. I don’t know on a TIP if the same hole exists, but on a manual just below the cps is an access whole to the flywheel/clutch assembly. I dropped the cps bolt and lost it too. I ended up dis assembling the entire back end and removed the Tranny to find the bolt had roles back onto a ledge on the engine block. it was just waiting to play pachinko with my flywheel. turned a 15min job into a 2 day nightmare. DYI tip, reach in there, feel for the hole and stuff a shop towel in there, so when your mag and tape plan fails, the bolt can’t find the hidey hole. mike
  11. Water pumps are a wink leak, in particular the bearing. unfortunately folks see chipped plastic impellers and think the plastic impeller is the problem. replaced with steel, bearings fail, and the steel impeller damages the block
  12. What does software voltage pin on the obdii control? if I assert a voltage on that pin will it change the mode of the DME?
  13. If you see me running around with a bunch of 9v batteries in OBDII bundles just before race grid -- LOL
  14. The rain, the battery running down, battery cables, kill switches, fuses, relays, DME, Immobilizer, Key RFID, etc None of that had anything to do with it Shortly after I bought the car I installed a traqmate system, including a traqmate USB to control the cameras and data acquisition. That system had been in the car for nearly a year prior including 2 or 3 event weekends with no symptoms whatsoever. There was a pin on the traqmate usb labeled 5v with the input analog pins. The documentation. Is poor, so I hooked up 5v off the obdii port after having found you can get 5v off of there (I don't remember how that was determined, probably internet) I eventually had to buy a street car to have a known good reference. She showed up late last week and was keen to success. After checking things back and forth between the street car and the Spec Boxster, including triple checking the DME. I decided some input to the DME must be wrong and is causing the DME not to let the car start. So I wrote out all 88 pins and made a chart and one by one probed each signal in the street car, and then did the same in the spec boxster. After probing all the signals between the street car and spb I noticed only a couple differences, one was the software voltage pin which only connects to the obdii port. Street car was 0v, spb 5v. Also the durametric could talk to both dmes, but on the spb, all live data was defaults and voltage was 0v, regardless of the DME, while on the street car with both DMEs I got live data. I went home and thought about where the 5v could have come from, and I remembered the traqmate usb had a 5v pin. I also remember sourcing that 5v from the OBDII connector as that is what I had found online to do. My spidy senses were tingling -- was I on to something? About midnight last night, I found some documentation online on the old traqmate system. It wasn't very good, but I could see a photo of the pins labeled on the USB box and blew up the picture. , It wasn't clear, but it looked like 5v was an output Not an input!!! I had figured at the time that the 5v was needed for the analog data acquisition, not the other way around. Surely it couldn't be that simple. After a sleepless night I ran out to the shop this morning, unconnected the traqmate usb And she fired right up Motherf@cker!!! I think the 5v put the dme into some sort of program mode or something, disabling its ability to start the car. Why did jumping it work without battery? I think once you got 14v, the 5v wasn't high enough to put it in the program mode... I also think that once you get running, the DME just does its thing -- OR, the Boxster's alternator put out 14v, and once again the 5v input was read as a low, not an assert. Further complicating the matter was the small fuse box that was added for accessories that I had tapped off of for the traqmate 12v hookup is janky, and I don't think it has a good internal connection. That's getting yanked and a new, and more accessible unit will be installed. Just diabolical.... Now I have to put it all back together and get my medical done and sign up for NOLA. Thank you very much to all who supported my efforts and responded to my posts -- especially Ahsai. If nothing else, the moral support allowed me to just keep plodding along.
  15. Yes grid E188 exists in MY2000, but contextually it doesn't make sense, it's the pin 86 on same relay Re/Bl, not the pin 30 Yellow -- So I don't think that is it. Ironically there is an E188 connection as well, but it is the wrong wire to the same Relay (Re/Bl pin 86). Additionally, the page 19 schematic is wrong -- as it shows K48 connecting a Re/Bl wire to Start Lock, which is actually K158. (looks like the connections are transposed) On the MY99, in context -- the signal doesn't have the a split connection on the pin 50, Yellow wire seen on 1999 to E188. I'm wondering if that is also a schematics error on MY1999. Mike
  16. S did get the 7.2 for 2000/2001. What page is E188 on for the other cars (I suspect it's similar) thanks, Mike
  17. Hooked up my durametruc can access both dmes On their respective cars. on race car all my live data looks like defaults and voltage is 0v on the street car I get real values and 12v for voltage. i was short on time and didn’t think to swap DMEs, will do that next time plan to probe each dme pin values as well might not be able to see cps on street car because I’d have to hack up ability to run starter without dme (which I don’t think can happen without mods)... will add it to the list of possibles.
  18. I have most of the wiring diagram understood. However, I'm confused about how to interpret BOX E188 Normally I would read that as ROW 188, Column E on an electrical diagram. But for a 99 Boxster there are only 170 Rows. thanks, Mike
  19. Cut the Crash wire on the running car 12v one side, 240mv other car started... so so that has no affect !!! the search continues
  20. Luted as EXP Cutoff, DME pin 12. I'm probing X3/1 - pin 6, GN/OR goes to M126 CU Airbag Which either goes to module M562 Control Unit Airbag pin 24 Crash Output or M563 Control Unit M R S pin 34 Crash Output It suggests this is coming from the immobilizer? I'll need to double check if mine is plugged in on the race car at this moment. (In theory its not needed because I have had the DME re-coded not to need the immobilizer.) I'm at the house now -- headed to shop later. However, that said, I had the set sent off and confirmed it would start another car before the modification (and after the no-start issues). I'm not at the point of hacking the good cars wiring harness yet to disconnect this signal to see what happens (but I'm getting close ? Mike
  21. Finally got the street car. fires up nicely drop in my hacked dme and it fires up just as quick. started probing some signals that seem key. theres one listed as crash its 2v on good car, 12v on race car. if I short the race car to gnd via probe light with multimeter in parallel it drops to 0v, but won’t start. set to 2v using variable supply, won’t start 2v is odd value, wondering if that signal is some sort of digital waveform where the ECU is a weak 12v pullup will grab scope tomorrow
  22. Any idea what the 88 pin adapter for the OTC is? I can find the basic box on eBay easy enough, thanks, Mike
  23. Just bought a street car to map DME and other signals in running car so that I'll have a check and compare list. I know a bit crazy -- but at some point, what is there to do. Not having a reference was burning a lot of time and angst. mike
