Hey guys - long time no see (which means 10+ years of bulletproof ownership!)


02 C2


both my my keys fobs have given up the ghost


i am ok with manual locking but when I turn the key to lock from outside only the driver door locks


if I am inside the car and press the lock switch both doors lock


no beeps / no codes


im sure there's a way to program the car to lock and unlock both doors when I manually lock with the key


can someone point me in the right direction? Loren ?

Share this post

Link to post
Share on other sites
    You can remove these ads by becoming a Contributing Member.

Possibly the conecting link between the lock assembly and the door handle: check the other sites, searching door locks, etc.

Share this post

Link to post
Share on other sites

I've searched rennlist - can you point me in the right direction here

Share this post

Link to post
Share on other sites

If both doors lock and unlock with the dash button then your mechanics are likely good.


I do not recall a way to have a manual key turn unlock both doors. These early cars did not have programming options.


Two possible solutions for the key fobs.

1. Open them up and replace what it likely a worn out button. Someone wrote this up for Boxster keys a while ago.

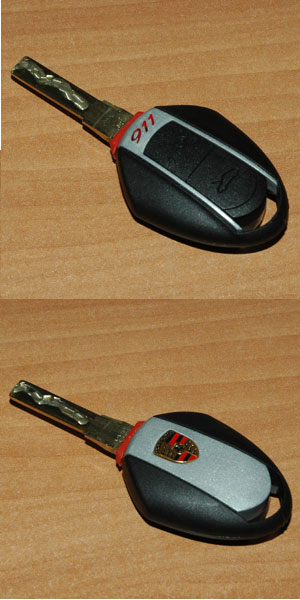

2. Buy one of the nice new Design key fobs and transfer your blade and transponder pill to the new key. No programming required.

Share this post

Link to post
Share on other sites

Both doors should lock with the key.  Are you sure the passenger door isn't locking and then immediately unlocking?  That would indicate a faulty microswitch in the passenger door lock assembly.  If that is the case, then try the emergency locking procedure.  Turn the key to the lock position and back to centre three times in quick succession.

Share this post

Link to post
Share on other sites

I will try the emergency procedure again today - turning twice was definitely ineffective - will try 3x

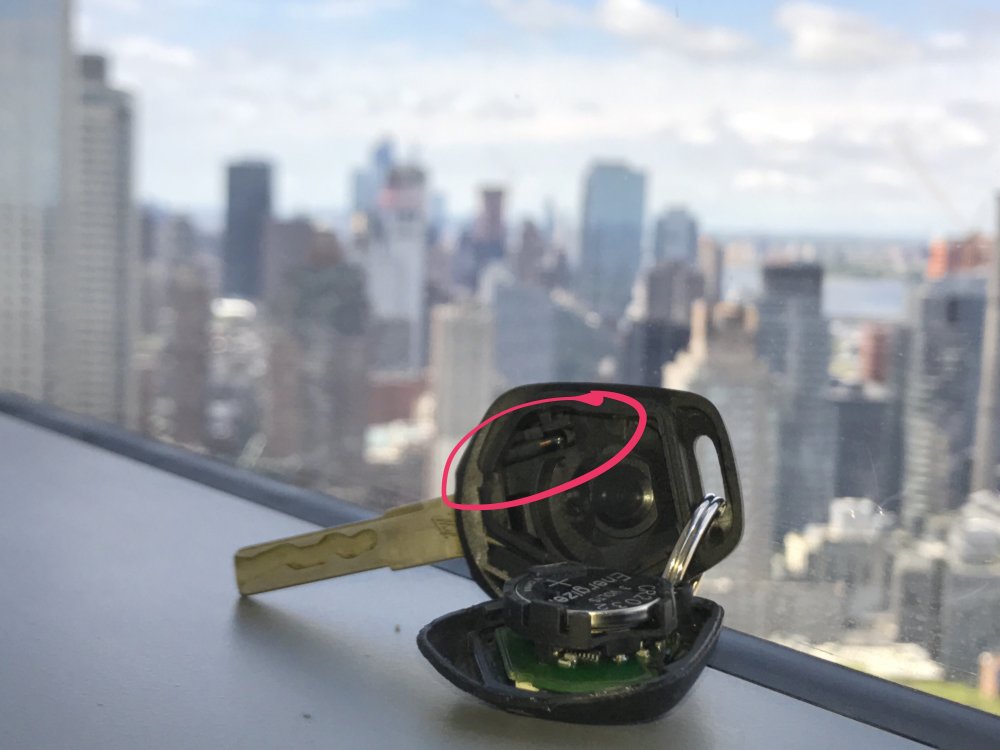

im attaching a photo- is the pill the circled part? Can I transfer to 997 key without transferring the circuit board and just the pill? Does dealer need to program and charge me $400?




Share this post

Link to post
Share on other sites

Yes, that is the transponder pill, but the pill and remote won't fit into a 997 key head.  Loren was referring to the Design Key for the 986/996.


Share this post

Link to post
Share on other sites

Ok so to be clear w regard to the design key- the pill AND the circuit board would need to be ported?


So if the circuit board isn't transmitting anymore for whatever reason - I'm off to the dealer for a new reprogrammed key correct ?

Share this post

Link to post
Share on other sites

Did triple locking work?  If it didn't, I think you might have a problem with the driver's door lock.  When you turn the key in the lock it physically locks the driver's side.  At the same time it operates a microswitch, which sends a signal to the alarm unit to lock the passenger side.  If the switch is broken it won't arm the system or lock the passenger side.

Yes, you will need to go to the dealer or a good independent Porsche specialist to program a new key head.

Share this post

Link to post
Share on other sites

You likely have two separate issues. 1. The key fob stopped working - this is very common and is likely caused by bad/broken solder connections on the PC board.  This is fixable and there is a DIY on this site. 2. You probably have a problem with your driver's side door latch. This is the more expensive of the two problems. A door latch will cost around $250 for the part.  The replacement DIY isn't too bad but I would try to better diagnose the problem before throwing money at it.

Share this post

Link to post
Share on other sites
