Does anyone know which connections are used on the engine ECU (2002 996 3.6) in order to operate the PSE at high road speeds only?

i have a retrofitted exhaust system with vacuum operated bypass which is currently controlled by a switch - but when it is turned on it is 'permanently on' even at low speeds. I want to connect the exhaust such that the system only operates at higher speeds as with the OEM system. Any help would be much appreciated

Paul G

Link to comment
Share on other sites

  • Admin

Yes but I doubt that will do you any good it is just one (of many) that go into the instrument cluster. And as I said the trigger speed is programmed into the cluster.

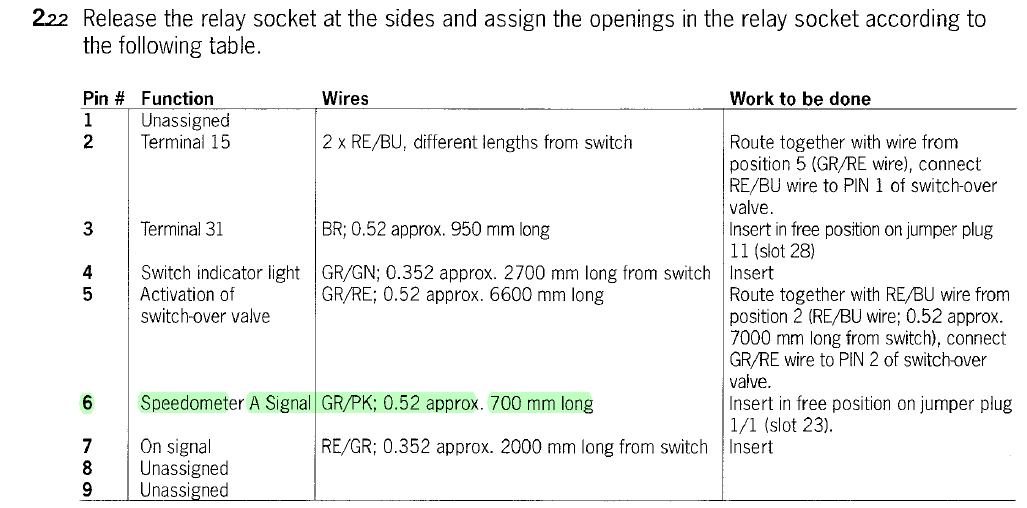

The wire connects at B13 connector pin and is labeled "Speedometer A". The wire is Gray/Pink.

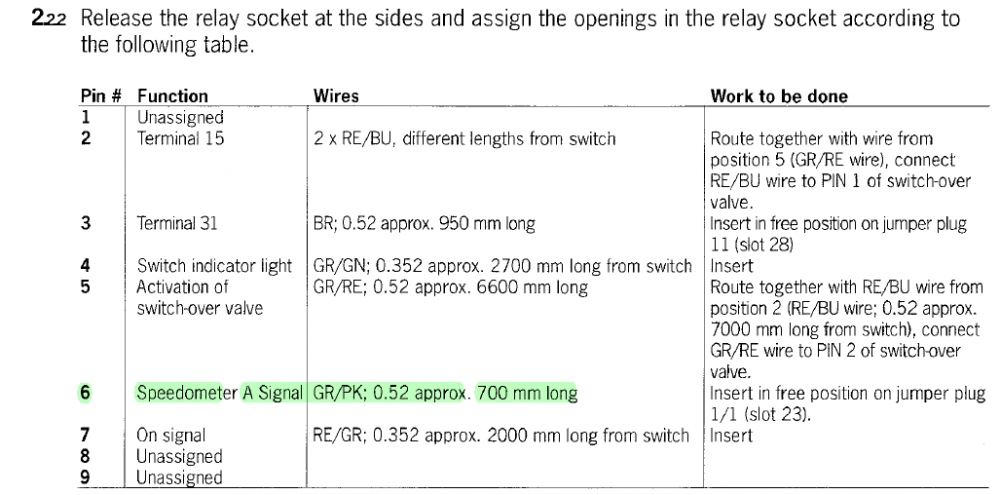

speedometer a.png

Link to comment
Share on other sites

The genuine PSE uses a relay connected to the grey/pink speed wire on the jumper plug on Loren's image. I don't see why you couldn't fit the PSE relay, and wire it up to your system. I don't think you would be able to adjust the cutout speed range though.



I have some additional information about the system which may be of use.  Drop me a PM with your email address and I'll send it to you in the morning when I get to my PC.

Link to comment
Share on other sites
