Recommended Posts

From TSB 0307 9112 PCM Software Release Versions (dated 11-24-03)

Vehicle Type: All PCM Equipped Vehicles

Model Year: As of 1998 (W)

Information: This bulletin is to inform you of the PCM software release versions. See the Technical Information Bulletin

pertaining to the specific vehicle you are working on for VIN cutoff dates.

PCM 1:

- Utilizes seven (7) map disks to cover the United States only

- Optionally installed in MY 1998 to MY 2002 vehicles

PCM 2:

- Utilizes two (2) map disks to cover the United States and Canada

- Optionally installed in MY 2003 and up vehicles.

- You can use updated map CD version 2003.1 in early PCM2s after updating the operating system from 2.0 to 3.0. See Technical Bulletin “PCM2 and BOSE Spare Parts Requirement” referenced below.

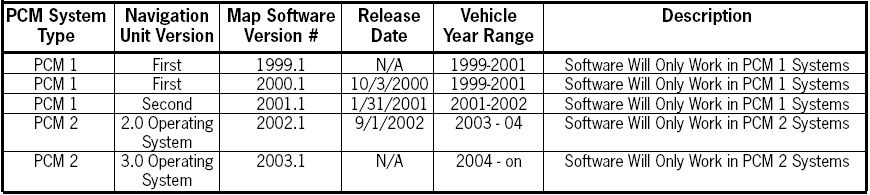

PCM System Navigation Map Software Release Vehicle Description


Navigation disks are available from NAVTECH. Their customer support number is 1 (888) 628-6277.

Share this post


Link to post
Share on other sites
    You can remove these ads by becoming a Contributing Member.

Hi, I posted this question already but I think you know more than anybody else here on this matter.

I am planning to buy a 997 S in the US equipped with the navigation system, do you think that if I'll ship it over to Europe and use it in Italy and Germany with the European discs it will work?

Thanks,

Giangi

Share this post


Link to post
Share on other sites

I have a 2003 PCM II with 2.0 software. What do I need to do to use the latest mapping software? Are there any visible benefits upon upgrading to OS 3? I use to have the problems with the Bose/ PCM II and they did a version upgrade to it at Porsche. It works fine now.

Share this post


Link to post
Share on other sites
I have a 2003 PCM II with 2.0 software. What do I need to do to use the latest mapping software? Are there any visible benefits upon upgrading to OS 3? I use to have the problems with the Bose/PCM II and they did a version upgrade to it at Porsche. It works fine now.

Your dealer should do this at no charge.

Share this post


Link to post
Share on other sites
I have a 2003 PCM II with 2.0 software. What do I need to do to use the latest mapping software? Are there any visible benefits upon upgrading to OS 3? I use to have the problems with the Bose/PCM II and they did a version upgrade to it at Porsche. It works fine now.

Your dealer should do this at no charge.

Do you recommend upgrading to 3.0 OS and getting the new Map?

Share this post


Link to post
Share on other sites
I have a 2003 PCM II with 2.0 software. What do I need to do to use the latest mapping software? Are there any visible benefits upon upgrading to OS 3? I use to have the problems with the Bose/PCM II and they did a version upgrade to it at Porsche. It works fine now.

Your dealer should do this at no charge.

Do you recommend upgrading to 3.0 OS and getting the new Map?

For your car you likely need to check the VIN with your dealer. If your car is a true MY03 (not a MY04 build) then your current software version 2 is correct and can not be updated. Your dealer can make one phone call using your VIN to PCNA verify whether your need or can use the update.

Share this post


Link to post
Share on other sites

Loren,

I have an '02 with the 7 disk system. Are you saying that I can upgrade to version 3/ PCM 2 that uses the 2 disk system?

Is this something that would be covered under the warranty or the "one free upgrade" plan?

Thanks,

Share this post


Link to post
Share on other sites
Loren,

I have an '02 with the 7 disk system.  Are you saying that I can upgrade to version 3/ PCM 2 that uses the 2 disk system?

Is this something that would be covered under the warranty or the "one free upgrade" plan?

Thanks,

No, not if you currently have PCM 1.

MY2002 was a little different since most cars got PCM1 and only the last build or two got PCM2.

Share this post


Link to post
Share on other sites
Loren,

I have an '02 with the 7 disk system.  Are you saying that I can upgrade to version 3/ PCM 2 that uses the 2 disk system?

Is this something that would be covered under the warranty or the "one free upgrade" plan?

Thanks,

No, not if you currently have PCM 1.

MY2002 was a little different since most cars got PCM1 and only the last build or two got PCM2.

Out of curiosity, does all of this discussion imply that there are some '02's with MOST, or some 02's with PCM2 that have analog connectivity?

While I'm asking questions, is there any analog output on a MOST PCM2? In other words, can you get the required plugs and also have analog output along with the MOST connectivity?

Dwayne

Edited by dwaynemosley

Share this post


Link to post
Share on other sites

Are there other TSB´s for Europe about the PCM software. I am looking for some info that came out about a new and maby last update for the PCM 1. There was something about a new cd reader also on the same info.

And also where do I find out what releses that have been made for the PCM software in europe ?

Hope someone can help me.

Share this post


Link to post
Share on other sites

I am putting in a PCM2 into my car next week from a buddy's 40th Anniversary Ed. His car had a CD changer and I would like to add one to my "new" system since you can't listen to a CD and utilize the map or nav function at the same time.

Is there a kit to add the CDC to my car - '03 carrera coupe with Bose and soon to be PCM II :) thanks for any points and/or costs/part numbers

TIA

Share this post


Link to post
Share on other sites
I am putting in a PCM2 into my car next week from a buddy's 40th Anniversary Ed.  His car had a CD changer and I would like to add one to my "new" system since you can't listen to a CD and utilize the map or nav function at the same time.

Is there a kit to add the CDC to my car - '03 carrera coupe with Bose and soon to be PCM II :)  thanks for any points and/or costs/part numbers

TIA

Your PCMII should be able to route you to up to 7 navigation stopovers and final destination and hold that in memory and you can take out the Nav CD and Insert a music CD. So both will work at the same time. I believe you will need a CDC-4 and I think the car is Pre-wired for it. You just may need the CDC base to secure it.

What you will need is the PCM II install kit/parts that are listed on this website. Do a seach and you will find it. Let us know how it goes.

Share this post


Link to post
Share on other sites

thanks Alex - i already have all the parts on order. some were not available(i.e. in stock) in the US so they had to be ordered from Germany. they should be here in about 2 wks

i'll post how it goes but hopefully it will be as smooth as Corey's

Share this post


Link to post
Share on other sites

I have a 2003 PCM II with 2.0 software. What do I need to do to use the latest mapping software? Are there any visible benefits upon upgrading to OS 3? I use to have the problems with the Bose/PCM II and they did a version upgrade to it at Porsche. It works fine now.

Your dealer should do this at no charge.

Do you recommend upgrading to 3.0 OS and getting the new Map?

For your car you likely need to check the VIN with your dealer. If your car is a true MY03 (not a MY04 build) then your current software version 2 is correct and can not be updated. Your dealer can make one phone call using your VIN to PCNA verify whether your need or can use the update.

Loren:

I went to Porsche and got my Nav ( PCM II) upgraded from 2.0 to 3.0 It has a couple of extra features like the display color. You can now select 2 color sets. There might be some extra features but have not noticed them. Also, I was actually able to continue using my original 2.0 Nav disks before getting my 2004 3.0 set. Once I installed the 3.0 Nav disc then it upgraded the Navigation software. Porsche did it for free. So the final question is are all 2.0 PCM II's upgradeable to 3.0? I don't believe NavTeq has a 2004 Nav set for a 2.0

Share this post


Link to post
Share on other sites

I bought the PCM2 from a friend, and am adding it to a 04 996 with already present 6 disc changer and bose amplifier. Before tearing it apart, do I need the fiber optic cable module 996 622 705 00 (radio/ pcm with amp and cd changer, not phone) or are all the cables already there when I pull the CDR23?

Share this post


Link to post
Share on other sites
I bought the PCM2 from a friend,  and am adding it to a 04 996 with already present 6 disc changer and bose amplifier.  Before tearing it apart, do I need the fiber optic cable module 996 622 705 00 (radio/pcm with amp and cd changer, not phone) or are all the cables already there when I pull the CDR23?

If your car did not have PCM2 previously then you will likely need the fiber optic cable. You will also need to have a shop re-program the MOST system (with a PST2 or PIWIS tester) in your car so that it know which options are being used. Have a look at the DIYhere.

Share this post


Link to post
Share on other sites
I bought the PCM2 from a friend,  and am adding it to a 04 996 with already present 6 disc changer and bose amplifier.  Before tearing it apart, do I need the fiber optic cable module 996 622 705 00 (radio/pcm with amp and cd changer, not phone) or are all the cables already there when I pull the CDR23?

If you have a CDR23 and the Bose system and changer, you have the fiber optic cable that you need already there. You will only need to change the location of the heater controls and add a new surround, install the GPS antenna, change out the PCMII mounting brackets, put it all back together, and have it all reprogrammed by the dealer.

This was my experience doing the retrofit in an '03 Targa.

Good Luck. :D

Share this post


Link to post
Share on other sites
Hi, I posted this question already but I think you know more than anybody else here on this matter.

I am planning to buy a 997 S in the US equipped with the navigation system, do you think that if I'll ship it over to Europe and use it in Italy and Germany with the European discs it will work?

Thanks,

Giangi

:drive: Yes, your NAV will operate in other countries, since all data is stored on the disc and the PCM uses SAT NAV(satalite navigation) so provided the correct disc is installed Europe is no problem. PCM in 997 uses DVD drive, so for the first time can provide constant navigation guidance within an entire continent. eg only 1 disc is required for western Europe.

Share this post


Link to post
Share on other sites

Gentlemen...this thread got a little confusing for low tech me....I'm purchasing a PCM2 which came out of a wrecked '03 TT, to install in my '03 C4S....there are no disks in the transaction....I was given a set of 2.0 disks....am I to assume that the compatible disks will be from 2.0, or do I have to wait to fire it up to find out?

If it is 2.0, and my disks work, is there any sense to upgrading to 3.0? The install is being done at an authorized Porsche dealer.

thanks

Share this post


Link to post
Share on other sites

I purchased a used PCM1 from LA Porsche to install in my 02 C4S which was built prior to MOST, has the Bose system, and the 6 CD player. I understood/was lead to believe that I was purchasing all needed parts but found out after the fact that it did not include what I believe you call the din sleeves, mount, trim around the dvd unit, or the lower trim piece. I went to the local Porsche dealer in town and really did not recieve any helpful info. Can anyone offer help with finding the necessary parts or have leads on these pieces in black and any wiring instructions?

Share this post


Link to post
Share on other sites
I purchased a used PCM1 from LA Porsche to install in my 02 C4S which was built prior to MOST, has the Bose system, and the 6 CD player.  I understood/was lead to believe that I was purchasing all needed parts but found out after the fact that it did not include what I believe you call the din sleeves, mount, trim around the dvd unit, or the lower trim piece.  I went to the local Porsche dealer in town and really did not recieve any helpful info.  Can anyone offer help with finding the necessary parts or have leads on these pieces in black and any wiring instructions?

WHERE I CAN CALL TO GET PCM1 NAVIGATION DISK OF SPAIN??? UPDATED!!

REGARDS.

Share this post


Link to post
Share on other sites
I purchased a used PCM1 from LA Porsche to install in my 02 C4S which was built prior to MOST, has the Bose system, and the 6 CD player.  I understood/was lead to believe that I was purchasing all needed parts but found out after the fact that it did not include what I believe you call the din sleeves, mount, trim around the dvd unit, or the lower trim piece.  I went to the local Porsche dealer in town and really did not recieve any helpful info.  Can anyone offer help with finding the necessary parts or have leads on these pieces in black and any wiring instructions?

WHERE I CAN CALL TO GET PCM1 NAVIGATION DISK OF SPAIN??? UPDATED!!

REGARDS.

Go to www.navtech.com

Share this post


Link to post
Share on other sites
Gentlemen...this thread got a little confusing for low tech me....I'm purchasing a PCM2 which came out of a wrecked '03 TT, to install in my '03 C4S....there are no disks in the transaction....I was given a set of 2.0 disks....am I to assume that the compatible disks will be from 2.0, or do I have to wait to fire it up to find out?

If it is 2.0, and my disks work, is there any sense to upgrading to 3.0?  The install is being done at an authorized Porsche dealer.

thanks

It has a couple of new features like selectable color screens. The new discs 3.0 have much more details, inlcuding POI's

Share this post


Link to post
Share on other sites

No, now navteq and porsche dont couple !!!!

How I can know if my pcm1 system has 1999.1, 2000.1 or 2001.1 map version??????

Edited by valcax

Share this post


Link to post
Share on other sites
