Dear All,

Can anyone please advise if the following data is correct for my recent wheel alignment job done? I don't have the original / correct data in hand, just want to make sure.

Thx

post-62517-0-79837500-1358829890_thumb.j

Edited by eso1968

Share this post


Link to post
Share on other sites
    You can remove these ads by becoming a Contributing Member.

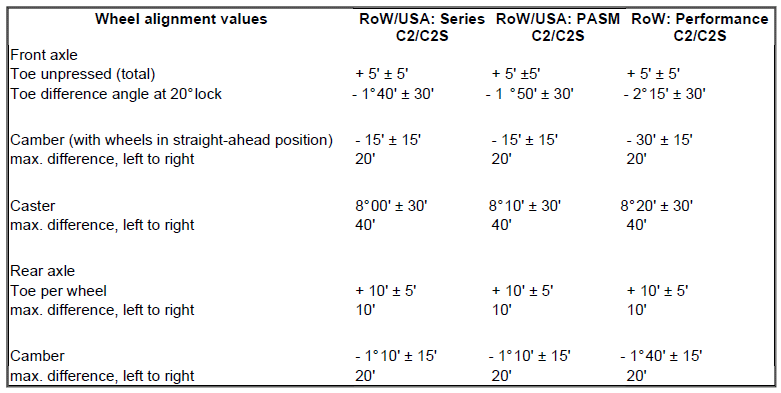

Adjustment values for suspension alignment - C2/C2S - as of MY 2005

Note: The following values relate to the empty weight, i.e. full fuel tank, vehicle with tools, but without driver and without additional weights. The following values relate to the empty weight, i.e. full fuel tank, vehicle with tools, but without driver and without additional weights.


Note: The following values relate to the empty weight, i.e. full fuel tank, vehicle with tools, but without driver and without additional weights.

The toe-difference angle value is also influenced by the vehicle height. For this reason the measured result must be evaluated accordingly. No action is necessary in the case of small deviations from the toe-difference angle's required value as long as the value to the right and left is almost the same.


Share this post


Link to post
Share on other sites

Adjustment values for suspension alignment - C2/C2S - as of MY 2005

Note: The following values relate to the empty weight, i.e. full fuel tank, vehicle with tools, but without driver and without additional weights. The following values relate to the empty weight, i.e. full fuel tank, vehicle with tools, but without driver and without additional weights.


Note: The following values relate to the empty weight, i.e. full fuel tank, vehicle with tools, but without driver and without additional weights.

The toe-difference angle value is also influenced by the vehicle height. For this reason the measured result must be evaluated accordingly. No action is necessary in the case of small deviations from the toe-difference angle's required value as long as the value to the right and left is almost the same.


Thanks a lot, I will study and compare.

Share this post


Link to post
Share on other sites

HI Loren,



Do you have access to the same info, but for 2006 997 C4S?



Thanks,



Fred

Share this post


Link to post
Share on other sites
