I plan to replace the RMS and IMSB on my 2003, Carrera, Coupe, 3.6, Tiptronic.  I have read about the MB version of the Tiptronic requiring the removal of the trans/engine together while the ZF can be removed separately.  Is this true and how can I determine which one that I have?  I crawled underneath and could not see an I.D. tag.  So far I have found conflicting information regarding the trans. in this car.

Link to post
Share on other sites
    You can remove these ads by becoming a Contributing Member.

  • 4 months later...

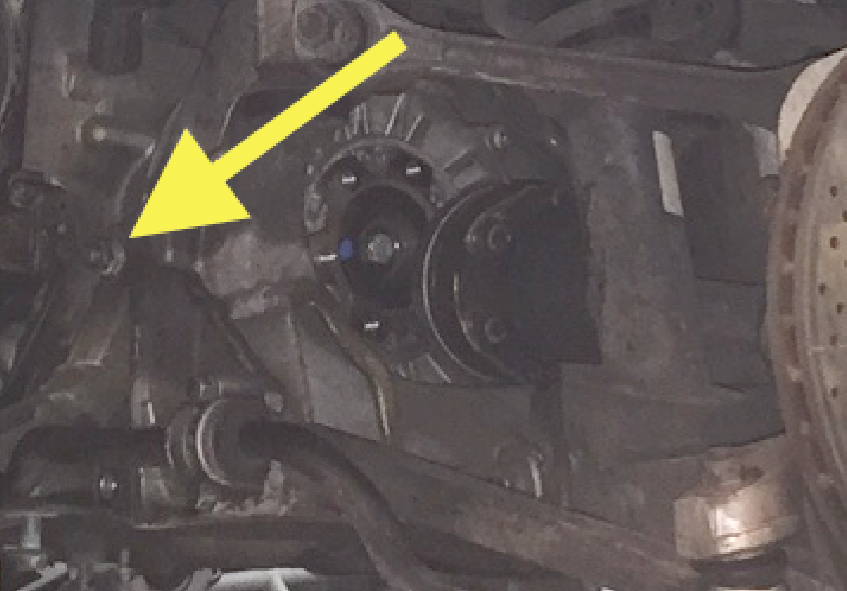

Hi-sorry for hijacking. I am trying to find information on how to remove the 02  C4 Tiptronic drive train. Seems very little documented. Specifically I am puzzled how to remove the upper M12 bolts, which holds the Aluminum cross-bar on the passenger and drivers sides (Note:  this is the bar right under the engine/Trans interface - Attaching picture of the problematic bolt pass-side) . I can losen the bolts , but I cannot pull them out (and  cross-bar stuck on car in turn) as the Trans output shaft flanges ends are on the way. From my C2/Man the removal of this bar and post  was easy. On the C4/Tip the engine removal strategy seems completely different. Any suggestions how to remove the cross-bar on the latter ? My thoughts go towards that I would have to remove the output shafts L+R to access , but I am not really convinced that this can be the (only) way. Thanks in advance.


Link to post
Share on other sites
  • Moderators

Are you supporting the weight of the trans with a transmission jack while trying to remove these bolts?  Both the engine and transmission need to be supported individually during this process, using a support bar for the engine and a trans jack for the gear box.  That sway bar also needs to be out of the way as well.



If you have access to the 996 Bentley manual, the process is outlined in section 37-16.

Link to post
Share on other sites

Those two bolts are captured so they can only be loosen and not removed. The middle support member just drops straight down (may need to pry a bit). It has two u channels (and not holes) where it's clamped down by those two bolts.

Link to post
Share on other sites
2 hours ago, JFP in PA said:

If you have access to the 996 Bentley manual, the process is outlined in section 37-16.

Thanks - the problem with bentley & co. is the lack of an instant  pdf download somewhere - whether  payed or free. It must be available when needed, as by the time the hardcopy would be in  - an alternative solution to a problem is likely to be found....   Your safety tips are certainly always worth noting. This is - of course # 1 concern in these DIY endeavors, and what takes most of the extra time you need to finish the project. It is my 3rd engine drop out and the 2nd of a 911. Back to my bolt issue -  thanks to an elver-fan in the EU, having posted a full copy of a service manual on the web (I will not re-distibute here, ; but since I always docu all details for myself, I will try to post my process when time permits) , I see the solution for my problem. The upper hole of the Cross Member (at least for Turbo/GT2 and it looks also any 4wd / and or automatic) is  topologically not even a hole. It is a half-oval shaped grove at best, and where losen the bolt will just suffice to proceed with bar removal.

Link to post
Share on other sites
1 hour ago, Ahsai said:

Those two bolts are captured so they can only be loosen and not removed. The middle support member just drops straight down (may need to pry a bit). It has two u channels (and not holes) where it's clamped down by those two bolts.

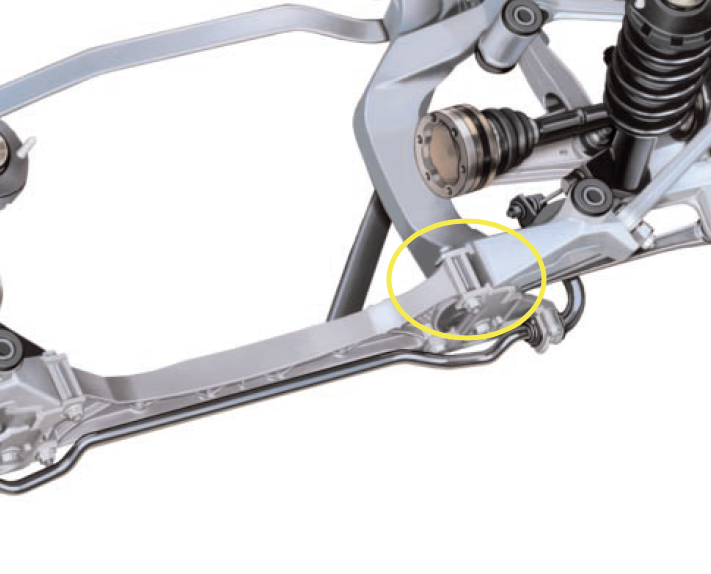

Thanks Ahsai-makes total sense - especially after having found a schematic of the upper cross member.


Link to post
Share on other sites

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.
