Bentley Porsche 911 Carrera Service Manual (996) - Book Review


Recommended Posts

  • Admin

I bought the Porsche factory manuals (all 17 volumes in 3-ring binders) in 2000 for about $600. I then spend about $100/year each for the next 6 years to get updates. My factory manuals ended up about costing $1200. Porsche stopped printing manuals a few years ago and the set was well over $1200 at that time.

That does not really cover everything - you also need the OBD II manuals for DME 5.2.2. DME 7.2, and DME 7.8 depending on your model year. When I bought my OBD II manuals (again in 2000) they were about $200 each. So to cover all models it cost me about $600. Porsche also stopped printing these manuals a few years ago and at the time each was over $800.

So all totaled I likely spent over $2000 for the factory service and OBD II manuals for the 996.



For $138 (on Amazon) you get the Bentley Porsche 911 Carrera Service Manual (996) hardbound manual with photos that the factory manuals don't have - and from I can see so far 99% of the information that is in the factory manuals. BOTH service manuals and OBD II manuals.

The manual layout is excellent logically each section from General Information and Maintenance to Wiring Diagrams and OBD II. Roughly 11 sections with great detail and photos the factory manuals never had. 1024 pages (and over 7.6 pounds) the manual is well composed and covers even some of the more tricky tasks. The photos are certainly worth a thousand words many times over.

Clear, concise, detailed and from what I can see complete - this IS the service manual to have if you own or work on the 996 series cars. I highly recommend it.



Updates and Videos can be found here

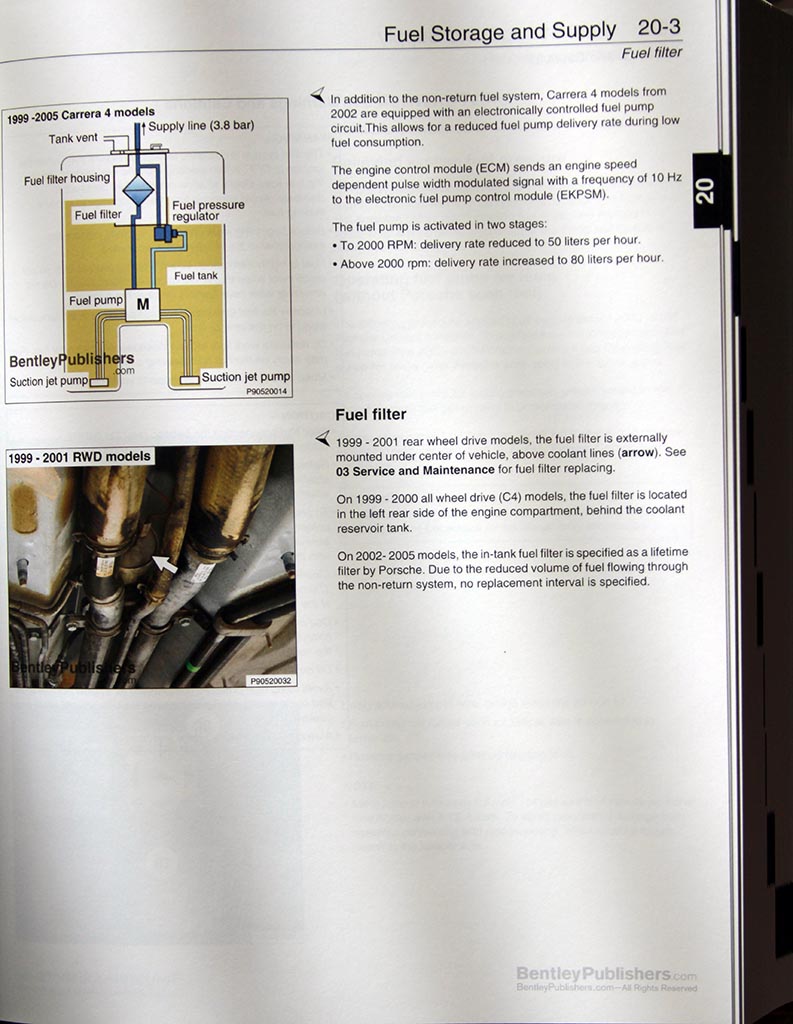

Here are a few photos I took of the book..

post-1-0-66653700-1351703406_thumb.jpg post-1-0-06369500-1351703412_thumb.jpg

post-1-0-29947900-1351703417_thumb.jpg post-1-0-18980200-1351703421_thumb.jpg


  • Thanks 2
Link to comment
Share on other sites

Fantastic write-up, Loren. I also ordered the manual ... looked other places and Amazon was the cheapest by far (most other places want $200 or more for the same book). Great value in my opinion, even if you're not doing the work on your own car. I'm only a hobby mechanic but, as a frame of reference, the cost of this book is about the same as 1 hr of labor at most Porsche shops. This should make it a lot easier for me to talk to a trained professional and to generally understand my car better.

Link to comment
Share on other sites

  • 2 weeks later...
  • Admin

Looks like a good book to have, but I'm waiting for the Pelican 101 996 book. I imagine it will have almost everything I need, at a much cheaper price.

A "service manual" and a "projects book" are two very different things.

I see a need for both.

Link to comment
Share on other sites

What makes you think Wayne's book will be cheaper? Private sellers are offering it for $119 shipped on Amazon. Paying $150-200 for books in undergrad and grad school is common practice these days, especially for quantitative/engineering books....like it or not. The Bentley Manual is a hardback, has lots of color pics, and contains a ton of information.

Link to comment
Share on other sites

What makes you think Wayne's book will be cheaper? Private sellers are offering it for $119 shipped on Amazon. Paying $150-200 for books in undergrad and grad school is common practice these days, especially for quantitative/engineering books....like it or not. The Bentley Manual is a hardback, has lots of color pics, and contains a ton of information.

The fact that the 101 Boxster book is way cheaper: http://www.amazon.co...rds=101 boxster I feel it is unlikely I will use most of the info in the Bentley book. If I ever need anything not covered in the Pelican book, the Bentley will still be there to buy.

Link to comment
Share on other sites

  • 2 weeks later...

I came here looking to start a thread on this book and here it is, excellent!

Unfortunately, it looks like the electrical schematics are the same ones as in the factory manual, correct? If so I guess they don't cover rain sensing wipers? I'm doing a bit of replacement work (the factory AWS12 system is TERRIBLE), but need better schematics to simplify the job. Does anyone mind looking up wipers in the manual and see what's covered? I'd be happy to buy the book if the information I need is in there.

Link to comment
Share on other sites

  • Admin

I came here looking to start a thread on this book and here it is, excellent!

Unfortunately, it looks like the electrical schematics are the same ones as in the factory manual, correct? If so I guess they don't cover rain sensing wipers? I'm doing a bit of replacement work (the factory AWS12 system is TERRIBLE), but need better schematics to simplify the job. Does anyone mind looking up wipers in the manual and see what's covered? I'd be happy to buy the book if the information I need is in there.

Yes, they are likely very close if not exactly the same as the factory.

Rain sensing is done with the rain sensor and one relay that replaces the intermittent wiper relay.

The rain sensor did not make to a wiring diagram until MY02 - but I think it is basically the same unit for all model years.

Link to comment
Share on other sites

  • 2 weeks later...

My 1999/2005 Bentley Manual arrived from Amazon today. All I can say is Wow. A quick thumbing through seems to indicate that this is a heck of a manual. Certainly the nicest workshop manual I have seen.

I don't have any project's planned right now, but this manual looks like it will make it clear and straightforward when I do.

Link to comment
Share on other sites

  • 3 weeks later...
  • Admin

I know this is the 996 section, but I am curious if Bentley is planning to publish a manual for the 997 or if there is enough similarity that the 996 manual would be good starter for maintenance on 997.2. Please be gentle on me. This post is my first.

:welcome:

The 997.2 is a very different design - engine, transmission, and much of the running gear. So I do not think a 996 manual would do much good.

If you look at how long it takes to put together a technical manual of that quality I don't think I would expect to see one for several years.

Basics like oil changes, and brake pads, etc. are pretty standard but hopefully some owners (and shop owners) will post so DIY Tutorials for those items in the near future.

Link to comment
Share on other sites

  • 3 weeks later...

I just received this service manual.This quote might help you in deciding if you really need it or not..."Although the do-it-yourself Porsche owner will find this manual indispensable as a source ofdetailed maintenance and repair information, the Porsche owner who has no intention of working onhis or her car will find that reading and owning this manual makes it possible to discuss repairsmore intelligently with a professional technician."I have Chilton's and Haynes from yesteryear and looking at this manual, I am amazed at all the electrical supervision, interogation and circuit management that goes on in the modern automobile.This book and the feedback on the DIY's here at this site for the most part is all I need to keepthe P-car repaired. It is always a challenge to fix something for the first time. After that, when you have to remove and replace something again, it is easy.This manual explains in a way that they realize you are going into a repair or maintenance job for the first time.

Link to comment
Share on other sites

  • Moderators

Does anybody know if the Bentley has a good explanation for replacing the steering rack? Mine is leaking and would like to replace myself with a rebuilt unit if possible.

They dedicate a couple pages with color photos, basic steps, and torque specs on the subject (48-10 and 48-11)

Link to comment
Share on other sites

  • Admin

Does anybody know if the Bentley has a good explanation for replacing the steering rack? Mine is leaking and would like to replace myself with a rebuilt unit if possible.

Yes, it is covered pretty well and includes photos of the work and torque settings.

Link to comment
Share on other sites

  • 1 month later...

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.

  • Similar Content

    • By Capnhook22
      Can the 2001 behind the dash wire harness work with the 2003 harnesses including 3.6L engine,  engine harness,  rear harness, dme 7.8, immobilizer,  etc

      This is a swapped 3.6 car that was functioning properly in an earlier 2001 race car. Had to Retub the car and move all the harnesses to donor 2001 chassis. Moved everything except the wire harness behind the dash.
      The car starts and functions except water temp gauge on the 2003 cluster connected to the 2001 wire harness behind the dash.  Also durametric recognized the cluster as an earlier cluster and not the k21 (3.6l) cluster.
      Any help will be appreciated.
    • By mklein9
      2002 C2, 95k miles, original exhaust and O2 sensors.

      A few months back the CEL went on, Durametric says P0420: Porsche fault code 40 - Cat. conv. efficiency bank 1. CEL has stayed on so I investigated further. Pre- and post-cat O2 sensor voltages shown in attached charts, upper chart for Bank 1 and the lower for Bank 2. Warmed up the system at idle, then throttled up to 2.5 - 3k three times, two short, one long, during which time all sensors went near zero.

      It looks like Bank 1 (upper chart) post-cat sensor is showing a problem while Bank 2 (lower) looks fine. (I started capturing Bank 2 after Bank 1) Also for a few years there has been a little rattling on the driver's side exhaust which I've suspected is a failing cat, but the exhaust system has not been recording any faults until now.

      After having read a few related threads, it seems fairly certain that the Bank 1 cat is failing, perhaps with a loose element that reduced cat performance after the third throttle bump in the charts below. I'm leaning that way because it appears the sensors are all reporting data at about the same rate, oscillating when expected, except for post-cat Bank 1's sensor which begins the capture looking like it is largely reporting correctly but ends with oscillations that shouldn't be there.

      There has been no perceptible change in performance, and I have over a year until the next smog inspection, so there's time.

      Does this information indicate a pretty strong likelihood of a failing Bank 1 cat? Or are there additional diagnostic steps I should take to eliminate other causes?

    • By royp4
      I have a 2003 996 carrera cabrio. Recently it has developed a rattle or possibly a warning buzzer at exactly 60 mph. Could this be related to the limiter setting? Any help would be greatly appreciated. Thank you in advance
      Roy Parnell.
    • By deane.barker
      My 1999 911 Carrera started smoking at a streetlight. Very smelly blue smoke was coming from under the engine cover. I pulled over and popped the cover. Blue smoke was coming from somewhere under the engine (not the exhaust). The engine stopped very suddenly.

      We don't have a local Porsche dealer, but the Subaru dealer owns a bunch of 911s and he has a couple Porsche mechanics. I had it towed there.

      The C1 fuse ("Engine Electronics") was blown. They replaced it, but as soon as they turned the key, the "cam adjuster wiring harness" (I do not know what this is) began to smoke, and the fuse blew again.

      They disconnected the cam adjuster wiring harness (I don't know what this means, and neither did the service advisor), and the fuse stayed intact, and they got the car started. They were able to drive it out to the parking lot with no problems.

      They said I need a new cam adjuster wiring harness (again, no idea what this is), and this would require an engine out repair, which they could not do. They estimated this work at $5,000 to $6,000.

      Additionally, they did not know how drivable the car was with a disconnected cam adjuster wiring harness.

      So ... how bad is this?  (Service report image attached.)

    • By radial
      To all 996 owners with PSE, especially those with a 4S.

      I think my 996 C4S exhaust behaves oddly. I think it's a fault but you might tell me it's normal behaviour. The problem is that I've always had this 'fault' on my car so I don't know if it's a fault or intentional behaviour. If you have the same car, perhaps you can shed some light on this.

      When I start it, it's noisy and sounds great. It quiets down as it runs for the first 5 mins.

      I have the PSE system and when I press the button you can audibly hear the exhaust note change - quieter when on and louder when off. Default is off so loud.

      Here's the rub. Up to around 1500rpm it's got a good noise then it fades out to the point where it's so quiet it's like driving my partners Yaris. If I keep accelerating, when I get to around 3500rpm the exhaust suddenly gets loud again. I mean it's immediate - like someones flipping a switched marked loud. It sounds great.
      It happens in 2nd and 3rd gears most noticeably and the PSE is in the 'off' position. If I have the PSE button on, then it's just quiet all the time and that works fine.

      So why the silent spot?

      I did read somewhere that German market cars might have had a system that turns on and off the PSE at certain speeds to prevent people driving round residential streets with a loud exhaust but information is thin and I don't think I was ever on UK cars.

      I have also had a small go at checking vacuum pressure at idle on both sides of the Y piece in the engine bay but both hold good pressure. One side has only a microscopic leak but not enough to cause this kind of issue.
×
×
